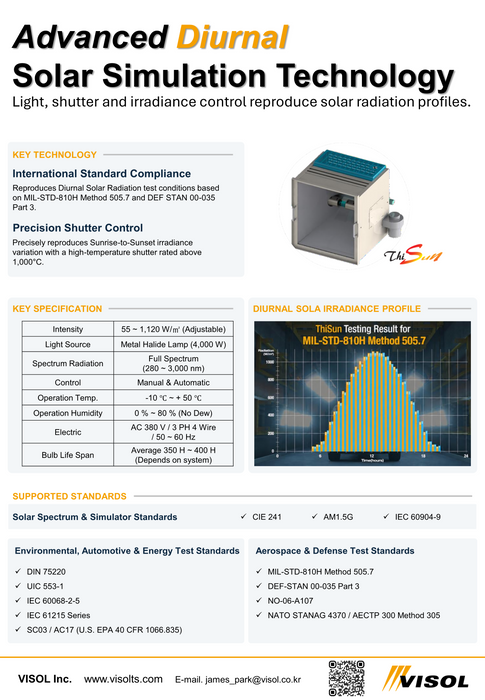

(Diurnal) Solar Simulation System
)
)
)
)
)
)
ThiSun is a high-performance solar simulation solution developed by VISOL to reproduce realistic solar radiation profiles throughout the day, from sunrise to sunset. It is designed for solar load evaluation, thermal performance testing, and environmental durability validation in automotive, aerospace, defense, transportation, and industrial applications.
Key Features & Technical Specifications
- Adjustable Irradiance: 55–1,120 W/m²
- Full-Spectrum Radiation: 280–3,000 nm
- Light Source: 4,000 W metal halide lamp
- Diurnal Simulation: Reproduces sunrise-to-sunset solar irradiance profiles
- Precision Shutter Control: High-temperature shutter rated above 1,000°C
- Control: Manual and automatic operation
- Operating Temperature: -10°C to +50°C
- Operating Humidity: 0–80% RH (non-condensing)
Applications

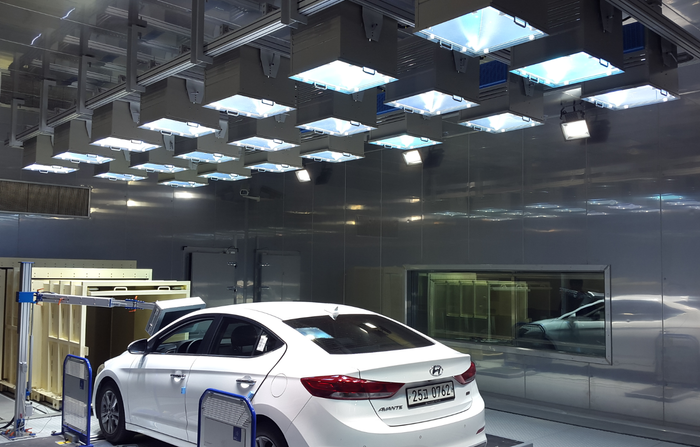

- Automotive & Mobility: Solar load and thermal performance evaluation of vehicles, EVs, vehicle interiors, HVAC systems, and automotive electronics.
- Aerospace & Defense: Solar radiation testing of UAVs, avionics, defense electronics, and military equipment.
- Railway & Transportation: Solar exposure testing of railway vehicles, cabins, windows, and large structures.
- Electronics, Materials & Energy: Environmental durability evaluation of displays, coatings, polymers, batteries, energy storage systems, and photovoltaic applications.
Relevant Testing Standards
ThiSun supports solar simulation applications associated with internationally recognized standards, including MIL-STD-810H Method 505.7, DEF STAN 00-035 Part 3, IEC 60068-2-5, DIN 75220, UIC 553-1, and NATO STANAG 4370 / AECTP 300 Method 305.
With precise irradiance control and flexible system integration, VISOL ThiSun provides a reliable solution for advanced solar radiation and environmental testing.
VISOL Inc.
www.visolts.com
