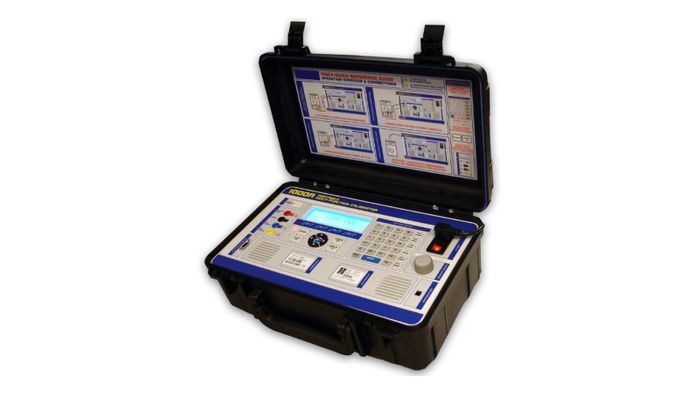

1000A Ultra Portable Multi Product Calibrator
)
The 1000 Series brings the capability of a multi-product calibrator to on-site calibration work in harsh environments where large bench calibrators are impractical. It combines a small footprint, light weight (about 21 lb) and a rugged IP67 case with a fast warm-up of under 20 minutes to 80 ppm accuracy, making it Transmille's most economical calibrator.
- DC voltage to ±1000 V with ±80 ppm best 1-year accuracy; AC voltage to 1000 V
- AC/DC current to 10 A (500 A with the EA002 current coil adapter)
- Resistance to 100 MΩ (passive decades) and variable resistance to 10 MΩ, ±0.02%
- Capacitance 10 nF to 1 µF; frequency 1 Hz to 100 kHz (±20 ppm)
- Thermocouple (J, K, T, R, S, B, N, E, L, U, C) and PRT/RTD simulation
- Optional insulation and installation tester calibration (Option INS)
- Adapters for clamp meters, process instruments and optical tachometers
- Fully compatible with ProCal calibration software
Learn more: https://transmillecalibration.com/1000-series-ultra-portable-calibrator/
