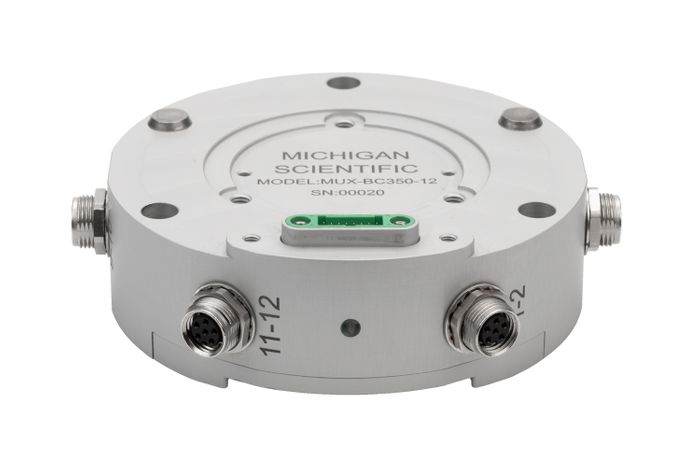

12-Channel Analog to CAN Modules
)
)
)
)
)
)
Features

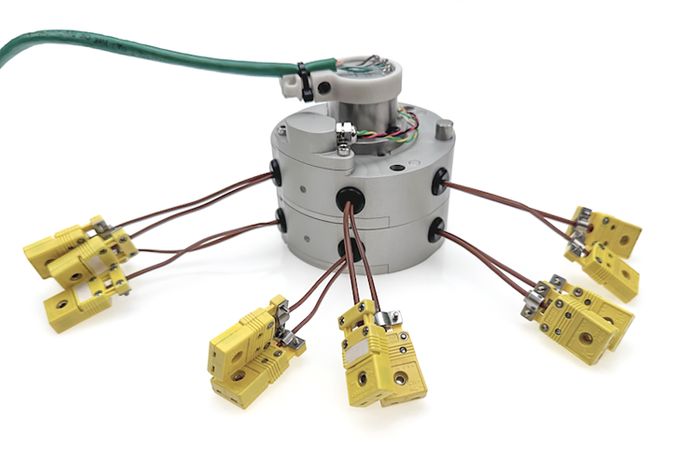

- Pair with Michigan Scientific slip rings for rotating applications
- Output data up to 8 ksps (CAN FD) / 2 ksps (CAN2.0)

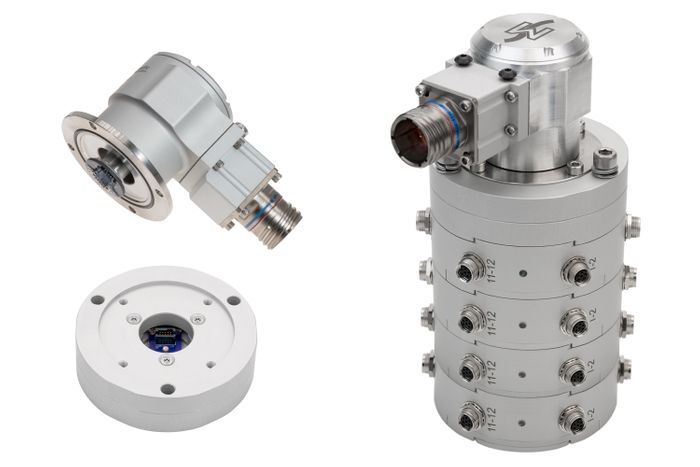

- Stack up to 4 modules for synchronized 48 channel sampling
- Compact design for limited space applications
- Measure strain, temperature, acceleration, position, pressure
- Use with strain gauges, thermocouples, RTDs, accelerometers, string pots, hall-effect sensors
- Use with absolute quadrature encoders to output position and speed
- Software-configure each channel independently
- Sensor excitation for ratiometric sensors
- Integrated shunt calibration resistors
- Galvanic isolation
