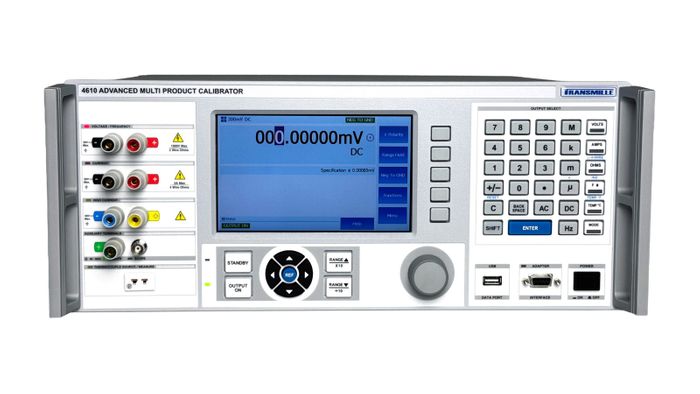

4610A Advanced Multiproduct Calibrator
)
The 4610A is designed for laboratories, manufacturers and design facilities that need a wide range of outputs at very high accuracy from a single instrument. Both fully variable and passive resistance and capacitance outputs are provided: variable outputs simulate non-decade values, while passive outputs allow precise calibration of high-accuracy meters.
- DC voltage accuracy to 7.5 ppm; DC voltage 0 to ±1025 V; DC current 0 to 30 A
- Variable resistance to 1 GΩ and variable capacitance to 100 mF
- AC voltage to 1 MHz, AC current to 30 kHz, frequency output 10 Hz to 1 MHz
- PRT/RTD and thermocouple simulation (J, K, T, R, S, B, N, E, L, U, C); inductance 1 mH to 10 H
- 7-inch capacitive touchscreen with embedded procedure mode and connection prompts
- USB and GPIB interfaces, I-GUARD protection to ±1000 V RMS
- Optional oscilloscope calibration to 3 GHz and power options; 3-year parts and labor warranty
Learn more: https://transmillecalibration.com/4610a-multi-product-calibrator/
