20 Nov 2024

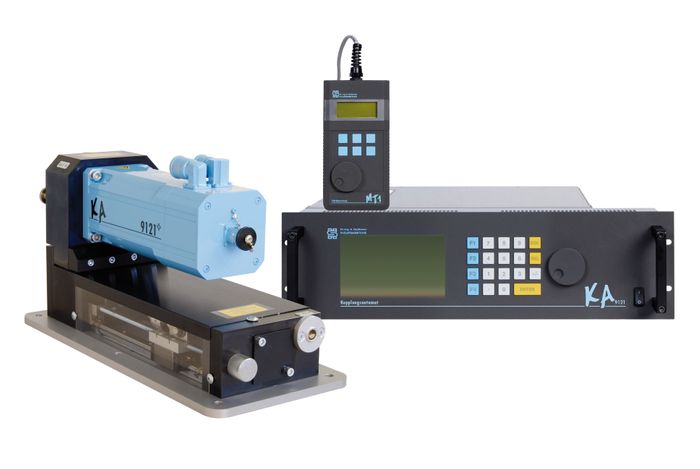

Automatic Clutch KA9121+ / Linear Motion Actuator FVG9401+
)
Main features KA9121+
• Max. shifting travel: 180 mm
• Max. shifting force: 1500 N (2000 N temporarily)
• Max. shifting speed: 0.64 m/s
• Resolution and repetitive accuracy: <± 0.05 mm
• Absolute position measuring
• Push and pull operation by 2 connection points
• Limitation of shifting force
• Max. shifting travel: 180 mm
• Max. shifting force: 1500 N (2000 N temporarily)
• Max. shifting speed: 0.64 m/s
• Resolution and repetitive accuracy: <± 0.05 mm
• Absolute position measuring
• Push and pull operation by 2 connection points
• Limitation of shifting force
• Extended Safety functions: 2-channel emergency stop and STO function, Optional Safely-Limited Speed (SLS)
Main features FVG9401+
• Max. shifting travel: 180 mm
• Max. shifting force: 700 N (2000 N temporarily)
• Max. shifting speed: 1.6 m/s
• Resolution and repetitive accuracy: <± 0.05 mm
• Absolute position measuring
• Push- and pull operation by 2 connection points
• Limitation of shifting force
• Connectable reset function with direction of action to be selected
• Extended Safety functions: 2-channel emergency stop and STO function, Optional Safely-Limited Speed (SLS)
• Max. shifting travel: 180 mm
• Max. shifting force: 700 N (2000 N temporarily)
• Max. shifting speed: 1.6 m/s
• Resolution and repetitive accuracy: <± 0.05 mm
• Absolute position measuring
• Push- and pull operation by 2 connection points
• Limitation of shifting force
• Connectable reset function with direction of action to be selected
• Extended Safety functions: 2-channel emergency stop and STO function, Optional Safely-Limited Speed (SLS)
