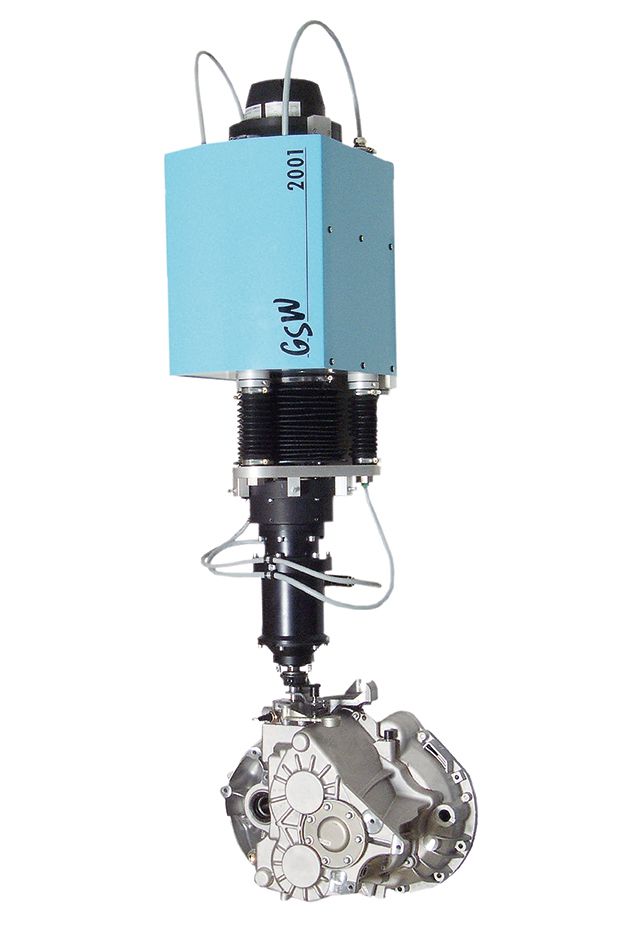

Automatic Gear Shaft Control GSW2001
)
Main features:
• 8 forward gears, 4 reverse gears, 1 idle position each can be stored in 32 data files
• Programmable path motions with travel-dependant forceand speed setting.
• Compensation of a centering error to the selector shaft
• Max. translatory setting travel: ± 30 mm (operating stroke) + 100 mm (park position)
• Max. rotatory setting angle: ± 130 °
• Max. translatory setting force: ± 1200 N
• Max. rotatory setting torque: ± 50 Nm (± 500 Nm on request)
• Max. setting speeds: 1.6 m/s referred to a virtual standard shift lever of 0.25 m lengt or 0.23 m/s for translation or 360 °/s for rotation
