- Clamps to any shaft 25 mm (1 in) or larger
- Smallest battery-powered telemetry package
- One or Three output channels
- Up to eight hours of battery life
- Lightweight rugged IP67 housing
- Digital 2.4 GHz RF link for reliable transmission without interference or spikes

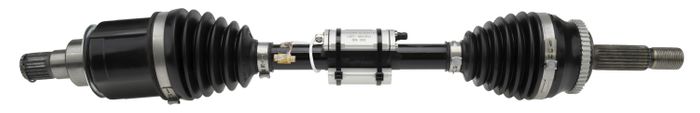

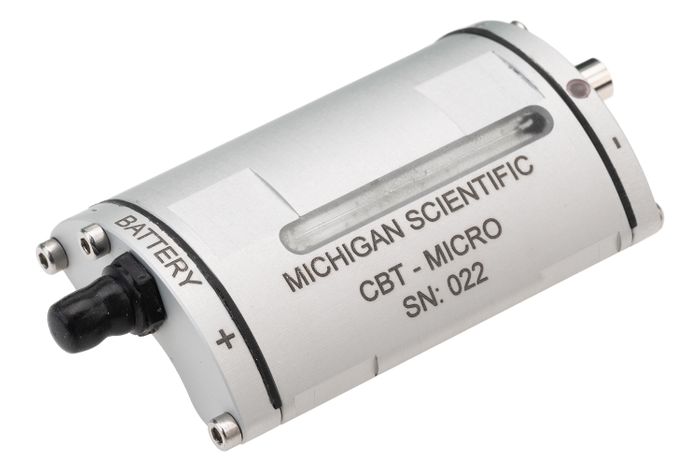

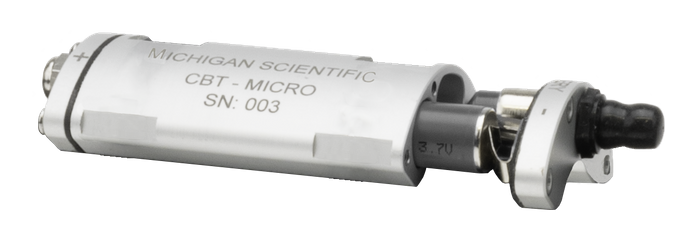

The Michigan Scientific Clamping Battery Telemetry Micro (CBT-MICRO) is a wireless, battery-powered signal transmitter for strain gages that easily mounts to shafts with a minimum diameter of 25 mm or larger, making it ideal for shaft mounting and very versatile. The Michigan Scientific Telemetry provides reliable signal transmission without interference or signal spikes. The CBT-MICRO can conveniently be strapped to any shaft with load-rated plastic zip ties, steel banding, or hose clamp. The CBT-MICRO provides excitation and signal conditioning to the strain gages, then digitally transmits the signals via RF in the 2.4 GHz broadcast frequency range. The CBT-MICRO is a small, rugged housing and is designed for hostile environments.
)
)
)
)
)
)
