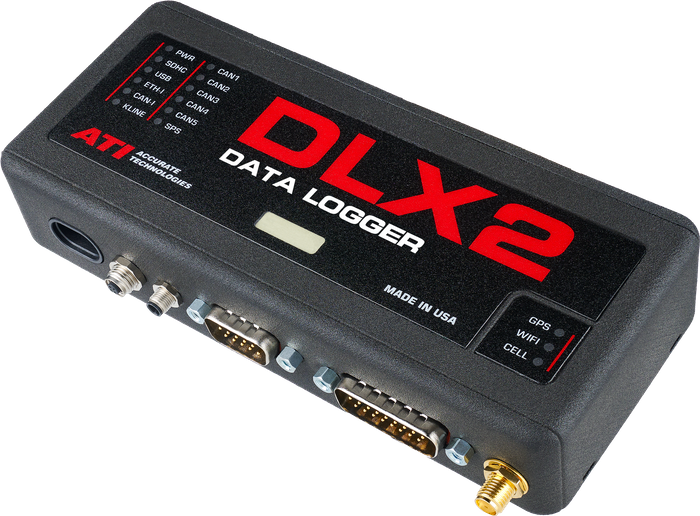

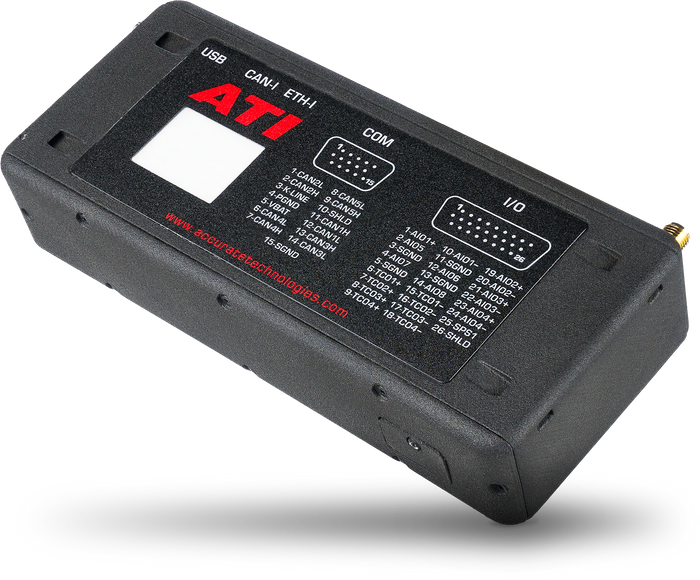

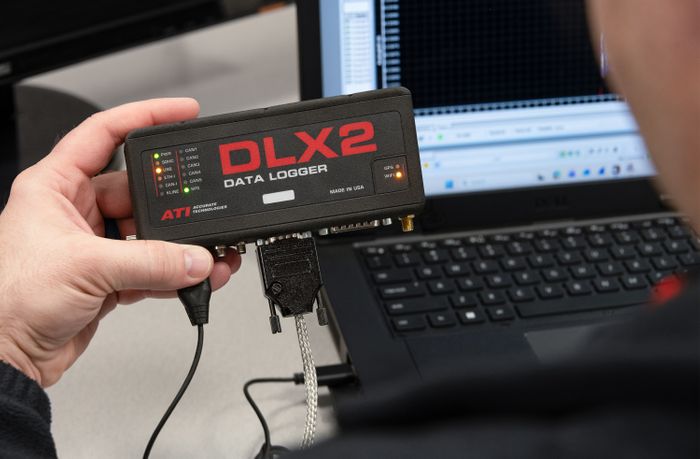

DLX2 Data Logger
)
)
)
)
)
)
The DLX2 Data Logger combines multi-channel CAN-FD, LIN, RS-485, analog, digital, thermocouple, IMU, and GNSS (GPS) data acquisition into a compact, sealed, splashproof enclosure. DLX2 operates standalone or as an ECU interface to VISION Measurement and Calibration software and VDA Analysis software.
Connectivity Options
• Up to (5) CAN-FD channels
• LIN, ISO 9141 K-Line, RS485
• USB 2.0 High Speed
• Wi-Fi 802.11b/g/n, Bluetooth v4.2
• Expansion ports for additional capabilities
Built-in Measurements
• (4) -5 to +5V 16-bit differential analog inputs
• (4) 0 to 40V 16-bit analog inputs
• (4) K-type thermocouple inputs
• Sensor power supply output 3 to 15V
• 9-axis Inertial Measurement Unit (IMU)
• GNSS (GPS, GLONASS, Galileo, BeiDou) w/external antenna
Compact Enclosure
• Robust lightweight sealed Polyamide enclosure
• LED status indicators
• Input power 5 to 36VDC
