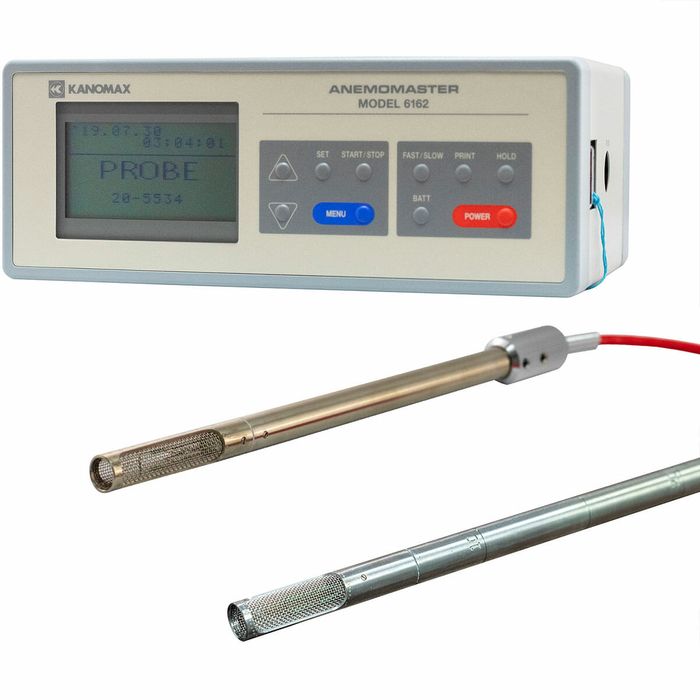

High-Temperature Anemometer – 6162 Series
)
)
)
)
For automotive and component manufacturers, the 6162 Series supports airflow evaluation inside environmental test chambers, curing and forming equipment, heated-air systems, industrial ovens, and other processes where conventional airflow instruments cannot tolerate the operating temperature.
High-Temperature Measurement
With the appropriate probe, the 6162 Series can measure air velocity in high-temperature air streams up to 752°F (400°C) and temperature up to 932°F (500°C). Air-velocity measurements extend up to 50.0 m/s, with the available measurement range varying according to the air temperature and selected probe.
Temperature-compensation circuitry helps maintain accurate air-velocity measurements when air-stream temperatures fluctuate rapidly.
Key Capabilities
• Simultaneous display of air velocity and temperature
• Air-velocity measurement at air temperatures up to 752°F (400°C)
• Temperature measurement up to 932°F (500°C)
• Air-velocity measurement up to 50.0 m/s
• Three interchangeable smart-probe options
• Storage for as many as 999 measurements
• Historical data displayed graphically on the instrument
• DC 0–1 V analog output
• RS-232C interface and remote start/stop terminal
• Battery or AC-adapter operation
• NIST-traceable calibration certificate available
Probe Options
Model 0203 is the mid-temperature probe and supports temperature measurement up to 392°F (200°C).
Models 0204 and 0205 are high-temperature probes capable of measuring temperature up to 932°F (500°C) and airflow in air streams up to 752°F (400°C). The Model 0204 is approximately 1,000 mm long, while the shorter Model 0205 is approximately 500 mm long.
Applications
• Automotive environmental and thermal test chambers
• Industrial oven performance testing
• Heated-air circulation and distribution studies
• Composite-material drying, curing, and forming processes
• Electronic-component heat testing
• Exhaust-air and ventilation measurement
• ISO 13579 energy-efficiency testing
• NFPA 86 industrial-oven testing
The 6162 Series is intended for clean, non-condensing, nonflammable air. Application suitability should be confirmed before using the instrument with other gases.
