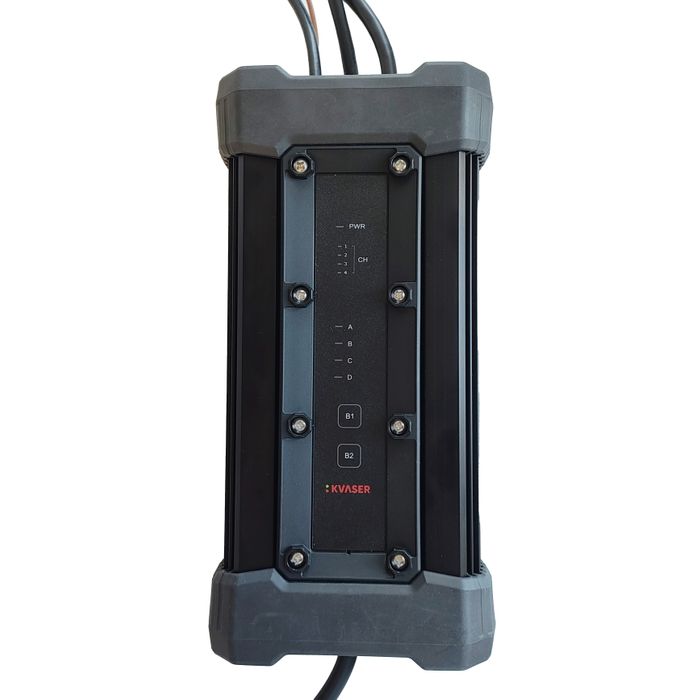

The Kvaser Edge WL420S is a rugged, IP67-rated edge computer that combines real-time CAN data acquisition with high-performance edge computing and advanced networking capabilities. Featuring a powerful i.MX8 multicore processor with integrated NPU, two Gigabit Ethernet interfaces, WiFi 6, GNSS positioning, and an onboard IMU, it is designed for demanding edge analytics, connected vehicle applications, and cloud-connected deployments.

Running Kvaser Edge OS (KEOS), a Linux-based operating system, the WL420S supports multiple Linux distributions and integrated container technology for secure deployment of custom applications. With four galvanically isolated CAN FD channels, integrated battery backup, and support for trigger-based operation, it is suitable for both advanced development projects and large-scale production deployments.

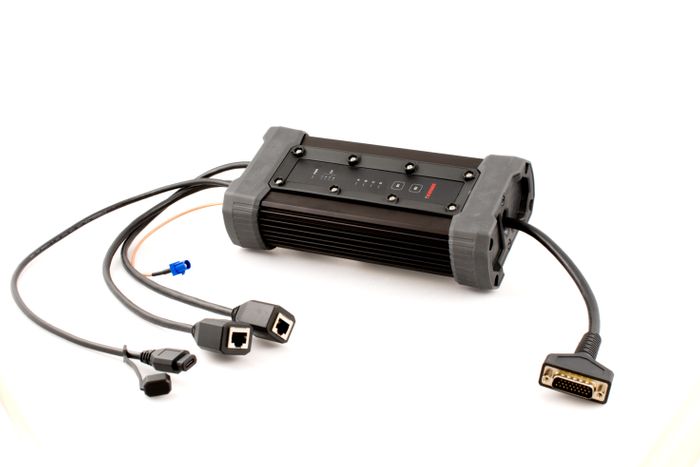

Please Note: To split the four channels into separate connections and enable power, a splitter cable, product 01633-0 is required, sold separately.

Discover more:
Kvaser Edge Platform -  Explore all features and capabilities
Kvaser Edge Help Center - Documentation, setup guides, and technical reference

Major Features:

• Designed for effortless execution of data logging and processing missions at the edge.
• Powerful embedded ARM-based Linux computer with ”Secure Element”, NXP SE051C2 facilitating CRA compliance with target software applications.
• Four fully featured, time-synchronized, individually galvanically isolated CAN-FD channels utilizing Kvaser CAN-IP implemented in FPGA.
• WiFi 6 enables high-speed wireless remote connectivity.
• Two Gigabit Ethernet (1000BASE-T) interfaces enable simultaneous access to multiple networks.
• Ruggedized housing with IP67 ingress protection.
• Wired interfaces for durable flexible connections.
• Inertial measurement units.
• Galvanic Isolated GPIO interfaces enables trigger-based logging.
• Separate galvanic isolated power supply with support of activation by ignition signal.
• High-capacity battery ensures safe shutdown and supports intermediate operation.
• Multi-GNSS (Global Navigation Satellite System) support (GPS, Galileo, GLONASS) for enhanced positioning accuracy and reliability.
