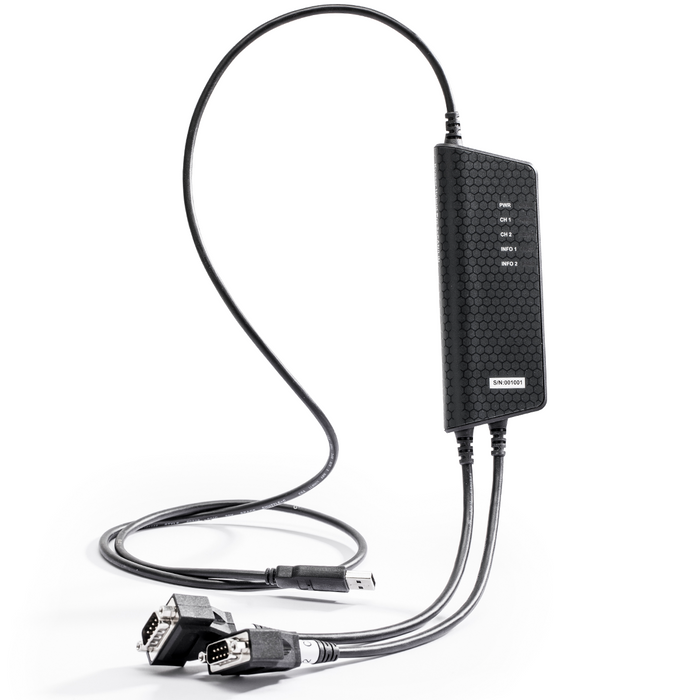

Kvaser Hybrid Pro 2xCAN/LIN is a flexible, dual channel interface that allows each channel to be assigned independently as CAN, CAN FD or LIN. This makes the Kvaser Hybrid Pro 2xCAN/LIN a must-have ’universal interface’ for every engineer involved in automotive communications!

The Kvaser Hybrid Pro 2xCAN/LIN offers advanced features such as support for CAN FD, Silent Mode, Single Shot, Error Frame Generation and Kvaser MagiSync automatic clock synchronization. As a Pro-level device, this interface can host user-developed programs, created using resources provided within Kvaser’s free CANlib SDK. These can be designed to accomplish a range of advanced tasks, such as CAN node simulation and CAN flashing, or create a LIN to CAN gateway. Guidance and code examples are provided.

Main Features:

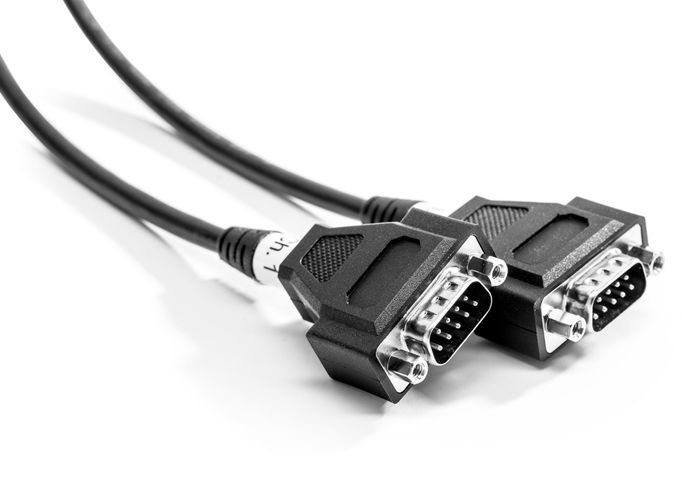

• Hybrid USB CAN/LIN two channel interface with two separate 9-pin D-SUBs.
• t-script allow users to customise the Hybrid Pro 2xCAN/LIN’s behaviour.
• Supports High Speed CAN (ISO 11898-2) up to 1Mbit/s and LIN 2.2A (ISO 17987 Part 1-7) up to 20 kbit/s.
• Supports CAN FD (ISO 11898-1) up to 5 Mbit/s (with correct physical layer implementation).
• Capable of sending up to 20000 messages per second, per CAN channel, time-stamped with a 1 microsecond accuracy.
• USB powered (bus V+ reference required for LIN).
• Kvaser MagiSync – automatic time synchronization between MagiSync-enabled Kvaser interfaces connected to the same PC.
• Single shot function ensures that failed CAN transmissions will not retry.
• CAN Error Frame Generation and Error Counters.
• LED lights indicate device status.
• Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
• Supplied with Kvaser CANlib and Kvaser LINlib, free software APIs that are common to all Kvaser hardware and enable the channels to be configured intuitively and fast.
• Extended operating temperature range from -40 to 85 °C.
• Support for SocketCAN, see elinux.org for details.
