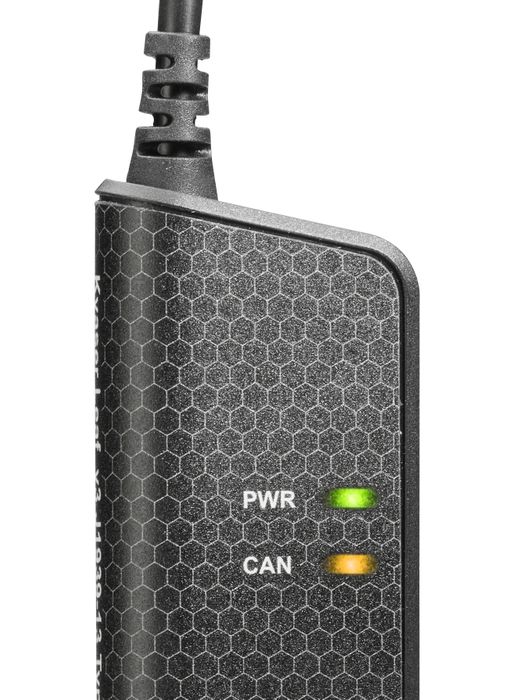

Kvaser Leaf v3
)
)
)
)

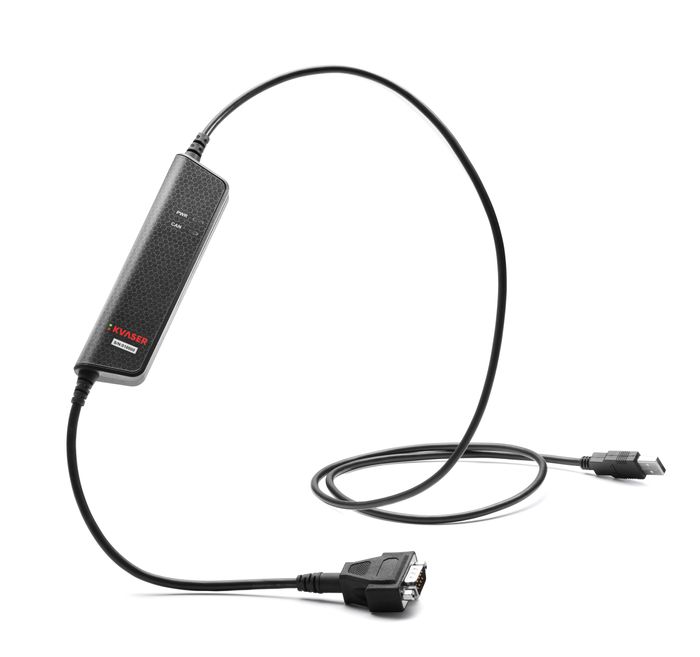

The Kvaser Leaf v3 represents one of the easiest and lowest-cost methods of connecting a computer to a CAN bus network in order to monitor and transmit CAN and CAN FD data. With its standard USB 2.0 connector and 9-pin D-SUB connector, the Leaf v3's sleek, ergonomically designed housing is both robust enough for everyday use and small and flexible enough to be used in space-constrained applications.
The Kvaser Leaf v3 can handle up to 20 000 messages per second, each time-stamped with a 50-microsecond accuracy. No external power is needed and galvanic isolation is standard.
The Kvaser Leaf v3 can handle up to 20 000 messages per second, each time-stamped with a 50-microsecond accuracy. No external power is needed and galvanic isolation is standard.
Learn more
YouTube: Introducing the Kvaser Leaf v3
YouTube: Introducing the Kvaser Leaf v3
Major Features
- 20 000 messages per second, each time stamped with a resolution of 50 μs.
- Supports CAN FD, up to 8 Mbit/s.
- Powered through the standard USB type “A” connector.
- Quick and easy plug-and-play installation.
- Supports silent mode for analysis tools – listen to the bus without interfering.
- Galvanic isolation comes as standard on the Kvaser Leaf v3, enhancing protection from power surges or electrical shocks.
- Use with Kvaser’s free general-purpose CAN monitoring software and a wide variety of advanced software for ECU development, diagnostics and calibration from Kvaser’s network of Technical Associates.
- Support for SocketCAN.
- Host OS Windows (7 or later), Linux.
- Supports J1939, CANopen, NMEA 2000® and DeviceNet when paired with advanced software from one of our many Technical Associates.
- Supports simultaneous use of multiple Kvaser interfaces.
