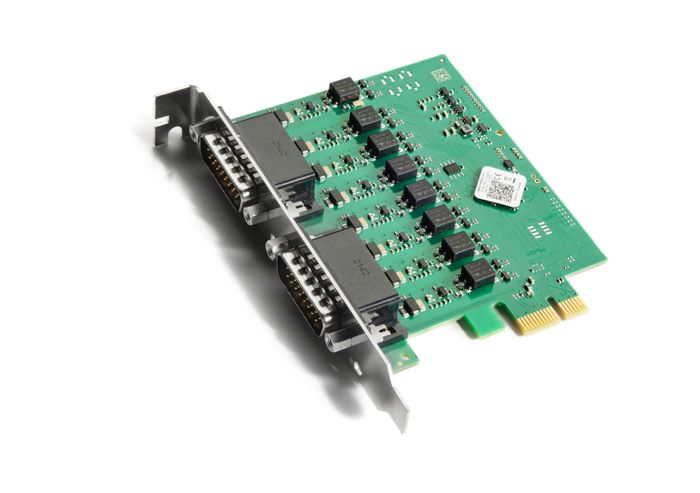

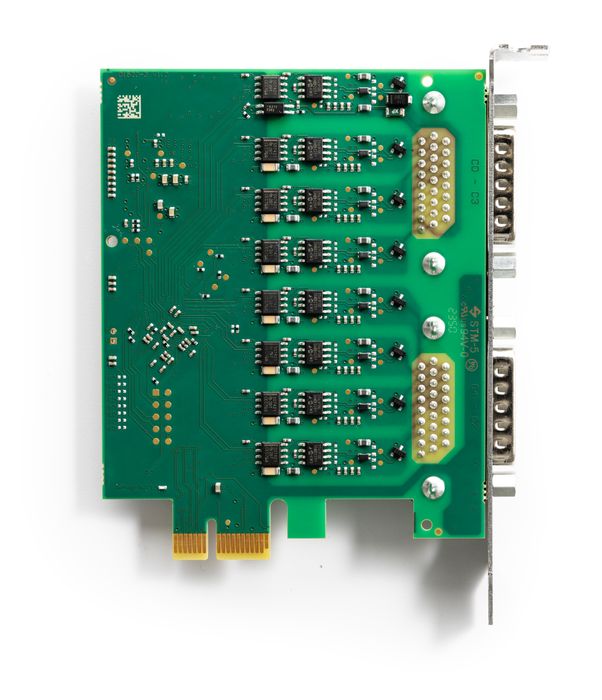

The Kvaser PCIe 8xCAN maximizes channel density through a single PCIe x1 slot, enabling the effortless design of advanced CAN systems.

It is a compact and advanced multi-channel real-time CAN interface with eight CAN/CAN FD channels.

The Kvaser PCIe 8xCAN is highly scalable. Multiple boards can be connected to capture data from tens of CAN channels at a time. An example is hardware-in-the-loop (HIL) suites for automotive testing, where 20 CAN channels are commonly required.

Please Note: To use all 8 channels you need two splitter cables, product 00830-4 or 01412-1, sold separately.

Major features

• PCI Express CAN interface.
• Supports CAN FD, up to 8 Mbit/s.
• Quick and easy plug-and-play installation.
• Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
• 100 % compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
• High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
• Supports silent mode for analysis tools – listens to the bus without interfering.
• Supports simultaneous usage of multiple Kvaser interfaces.
• Full-profile PCIe card.
• Support for SocketCan.
• Compatible with J1939, CANopen, NMEA 2000® and DeviceNet. Higher layer protocol translation handled by the user’s application. For software support please see our Technical Associates products and our Software Download page (www.kvaser.com).
