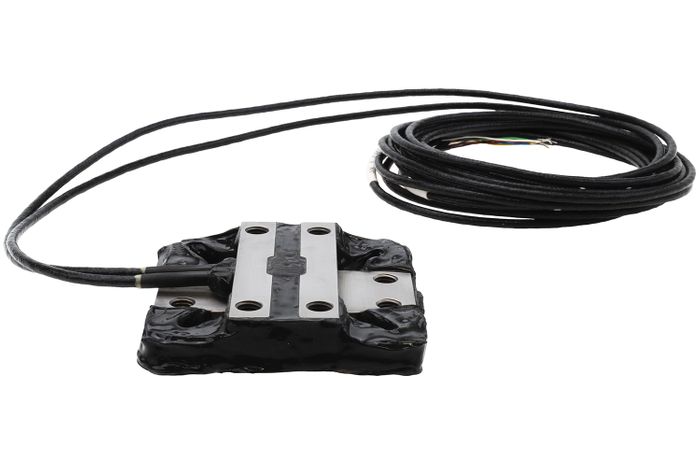

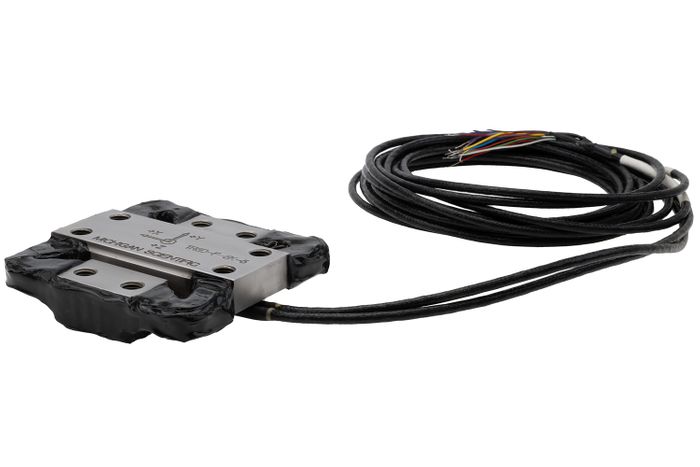

Low Profile Six-Axis Load Cell, TR6D-F
)
)
)
)
- 22 kN and 45 kN force capacities
- 1.1 kN.m and 3.4 kN.m moment capacities
- Measures forces and moments in three perpendicular directions
- Low profile design (26 mm and 40 mm in height)
- Environmentally protected
- Low cross-axis sensitivity
- Temperature compensated
- Rugged stainless-steel construction
The Michigan Scientific Low Profile Six-Axis Load Cell is designed for applications that require three force and three moment measurements in a low-profile package. Available in 5,000 lbf (22 kN) and 10,000 lbf (45 kN) force capacities and 800 lbf . ft (1.1 kN • m) and 2,500 lbf . ft (3.4 kN • m) moment capacities, this rugged transducer is ideally suited for both field data acquisition and laboratory testing.
Constructed from high-grade stainless steel and sealed for weatherproofing, all models provide excellent resistance to corrosion and environmental conditions. Temperature compensation of the transducer ensures stable output throughout a wide temperature range.
