MICRO Shock Dyno
)
)
)
)
)
)

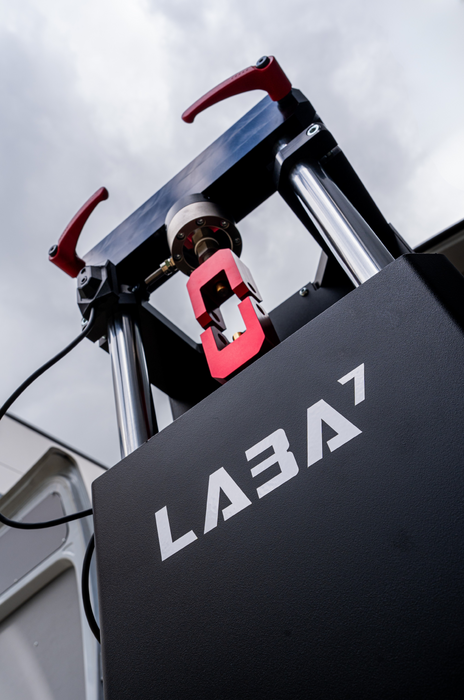

Precision. Compact. Uncompromising. The LABA7 MICRO Shock Dyno is the smallest Scotch-Yoke damper testing system LABA7 has built, designed to travel with you to the shop, the van, or trackside without cutting into testing capability. By pairing a closed-loop servo motor with the same 10 kN load cell and Shock Dyno Software v2 used across LABA7's full-size dynos, MICRO runs full damper test protocols in a footprint that fits almost anywhere you have a workbench and a wall outlet.
Key Features
- The closed-loop servo motor holds precise, steady velocity from as low as 1 mm/s up to 1000 mm/s, giving you the fine speed control needed to isolate seal drag and stiction at low speed, without the equipment drifting off pace under load.
- Runs the exact same 10 kN load cell and Shock Dyno Software v2 as LABA7's larger dynos, so test data, graphs, and analysis carry over with zero learning curve, no matter which LABA7 dyno you're standing in front of.

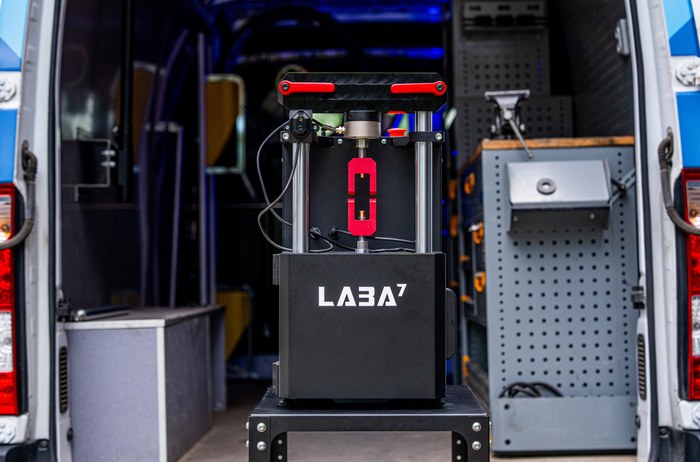

- At 363×395 mm and 65 kg, MICRO fits on a bench, in a service van, or in a trailer, freeing you from needing a dedicated test room or reserved floor space.
- Powered by a standard single-phase 220/240 VAC outlet, so there's no 3-phase install or special electrical work required to get it running.

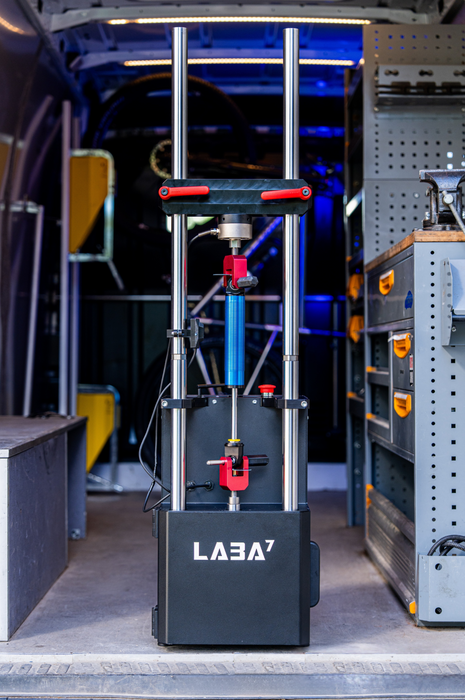

- Three interchangeable strokes (10/25/50 mm) and a free mounting length up to 700 mm cover a wide range of damper sizes, from motorcycle and ATV shocks up to full-size car dampers.
| Specification | Value |
|---|---|
| Motor | 2.0 kW closed-loop servo |
| Velocity | 1–1000 mm/s |
| Load cell | 10 kN |
| Strokes | 10 / 25 / 50 mm |
| Free mounting length | 0–700 mm |
| Footprint | 363×395 mm (0.14 m²) |
| Weight | 65 kg |
| Power | Single-phase 220/240 VAC |
| Software | Shock Dyno Software v2 |
| Connectivity | Ethernet / USB / WiFi |
Why Choose MICRO?
Traditional dynos are built to sit in one place; the LABA7 MICRO Shock Dyno is built to go wherever the testing needs to happen. For many teams, this will be their first shock dyno, and for some, the only one they'll ever own, so it was held to the exact same standard as the rest of LABA7's range, not a smaller standard for a smaller price. At €6,000 ex-VAT, it's the most affordable shock dyno LABA7 has built, without compromising the testing quality that comes with the LABA7 name.
