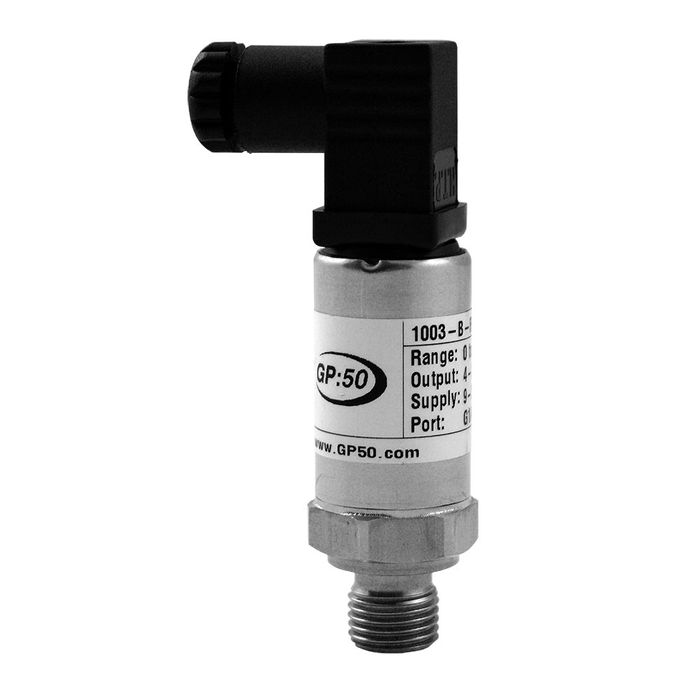

Model 1001/1002/1003 Low-Cost OEM Pressure Transducer
)
The Model 1001/1002/1003 features corrosion-resistant, all stainless steel wetted parts and housings. Series transducers are ideal for higher volume pressure monitoring applications, particularly where lower costs are required, yet where the need for precision measurement accuracy remains. Units are available with choice of 4-20 mA, 0 to 5 Vdc, 0 to 10 Vdc or mV/V output, as well as various electrical connection and pressure port options. Typical applications for the Model 1001/1002/1003 include off-road vehicle, HVAC/R, hydraulic and pneumatic control systems, pumps and compressors, and industrial engine pressure monitoring.
• Low-cost, high reliability • Up to 0.25% FSO accuracy • Compact 0.870” diameter • Rugged, all welded construction •NEMA - 4X/IP65 rated • CE Directives: EMC, PED, ROHS
• 4-20 mA, 0.011-5 Vdc, 0.011-10 Vdc and mV/V outputs available • Alternate connectors & pressure ports
