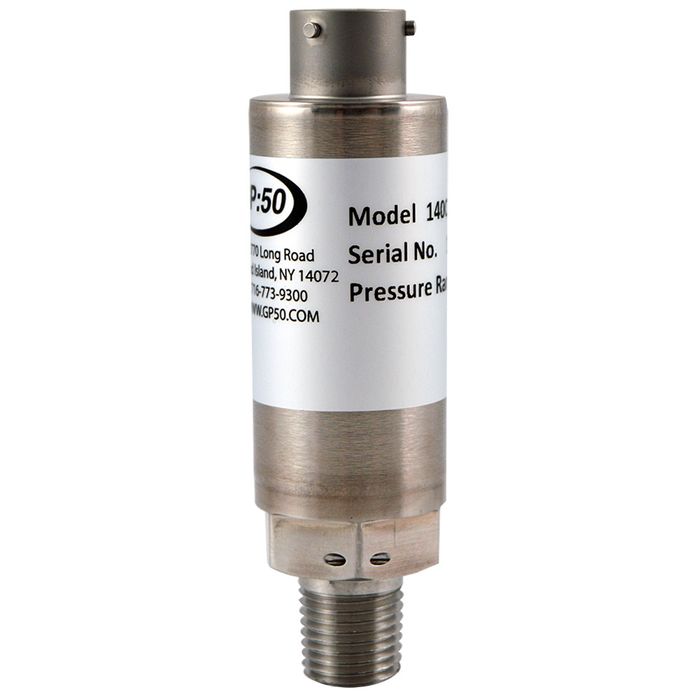

Model 140/240/340 Compact Industrial Pressure Transducer
)
The Model 40 Series provides a compact, rugged design to meet the demands of hydraulic and pneumatic applications found in process automation, test stand, and OEM applications. Its rugged stainless steel design offers high corrosion resistance in pressure ranges from 0-25” WC (69 Mbar) to 30K PSI (2068 bar).
• Compact design for ease of installation • Rugged, all stainless, welded construction • Ranges 0 to 1 PSI thru 0 to 30K PSI (69 MBAR to 2068 BAR) • 4-20mA, Vdc or MV/V output • Optional process and electrical connections
• Shunt calibration for active line testing without a pressure source • Comprehensive list of process and electrical connections for existing application retrofits • Exotic materials available (For Hazardous locations ask about Model 240-AI/340-AI)
