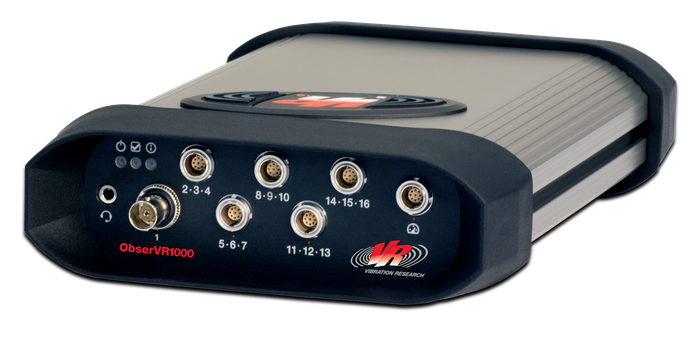

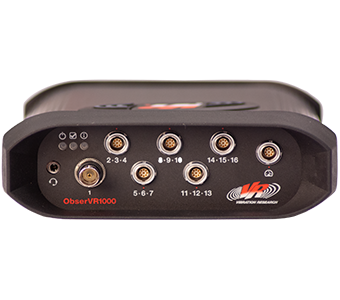

The ObserVR1000 is a compact and portable dynamic signal acquisition device. It can function as a 16-channel-count analyzer or vibration controller (stackable up to 128 channels). With the integrated VR Mobile software, customers can operate this battery-powered device autonomously for 6+ hours. Tap the hardware with a near-field communication (NFC) device, and the VR Mobile app will instantly create a Wi-Fi connection.

The ObserVR1000 is configured with an auto-TEDS feature to help eliminate setup errors and reduce processing time. Customers can connect up to 16 sensors to measure multiple vibration sources at sample rates up to 128kHz.

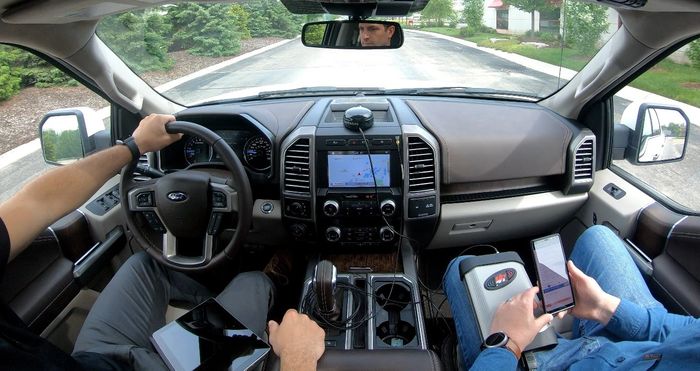

With the ObserVR1000, customers can record time references and locations during recording. The device can collect data such as acceleration, location, and velocity from a tachometer and GPS antenna while a camera records video. Customers can also use the triggering feature to select a trigger level, slope, channel, and duration to capture transient events. Event trigger options include vehicle startup, G-levels, a transient event, and more.

Following data acquisition, the vibration and tachometer data, video, and GPS mapping can be synced in the tightly integrated ObserVIEW software. ObserVIEW supports editing, post-processing, and analysis of up to 1 million FFT analysis lines of resolution.
