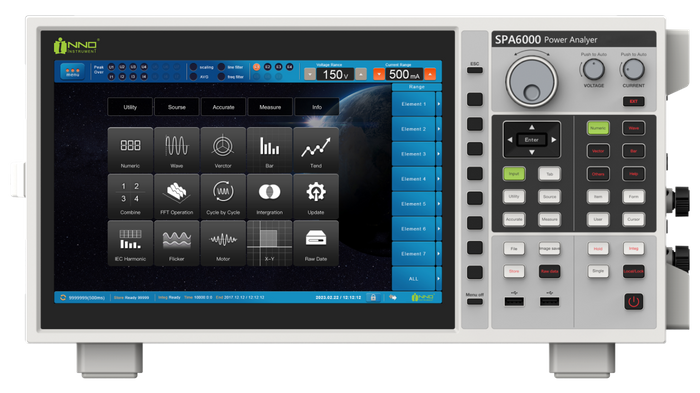

SPA6000 – High Precision Power Analyzer
The SPA6000 measures voltage, current, power, and efficiency for inverters, motors, transformers, and other power conversion devices. It has 4 power channels and 2 motor channels, with modular inputs that can be mixed to suit different ranges and accuracy requirements. Basic accuracy is ±(0.01% of reading + 0.02% of range), with a bandwidth of DC and 0.1 Hz to 5 MHz. It analyzes harmonics up to the 500th order, evaluates motor performance, and measures voltage fluctuation and flicker. Results appear as numeric, waveform, trend, bar graph, and vector displays on a 12.1-inch HD touchscreen, with up to 1 TB of SSD storage.
