SBT1000/SBT300/SBT60 Battery Tester
)

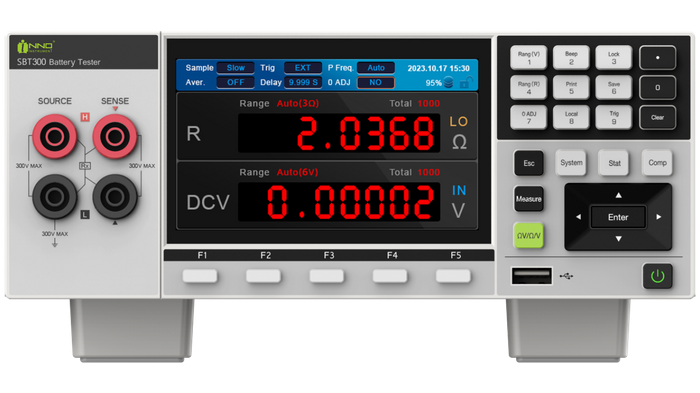

SBT300 / SBT60 – Battery Testers
The SBT300 and SBT60 measure battery internal resistance and voltage with high precision using the AC four-terminal method, which removes the effect of test-lead resistance. Voltage accuracy is ±0.01% of reading ±3 digits, with resolution down to 10 µV, and the resistance range is 3 mΩ to 3000 Ω, with resolution down to 0.1 µΩ. The SBT300 measures up to 300 V for high-voltage battery packs, and the SBT60 up to 60 V. A built-in comparator gives Pass/Hi/Lo judgments, and statistics functions support fast inspection of cells, modules, and packs in R&D and mass production.
The SBT300 and SBT60 measure battery internal resistance and voltage with high precision using the AC four-terminal method, which removes the effect of test-lead resistance. Voltage accuracy is ±0.01% of reading ±3 digits, with resolution down to 10 µV, and the resistance range is 3 mΩ to 3000 Ω, with resolution down to 0.1 µΩ. The SBT300 measures up to 300 V for high-voltage battery packs, and the SBT60 up to 60 V. A built-in comparator gives Pass/Hi/Lo judgments, and statistics functions support fast inspection of cells, modules, and packs in R&D and mass production.
