CAPACITEC CAPTEURA SINGLE CHANNEL AMPLIFIER - 210-SLCP
)
Capacitec’s new amplifier
consolidates several modular components with
this new Integrated Amplifier.
The Capteura 210
allows you to optimize critical sensitivity over
multiple ranges of Interest for your application.
This package reduces costs, advances the art of
exceptional thermal stability with proven long
term reliability.
Non-Contact Displacement Sensing System
AB®
© 2025 Capacitec, Inc.
Capteura210Series Rev0625 www.capacitec.com

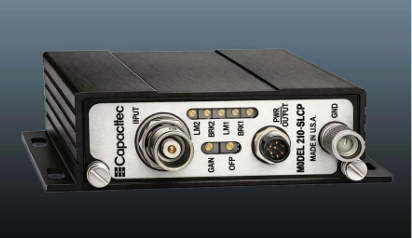

The Capteura Model 210-SCP
210 SINGLE
CHANNEL AMPLIFIER
Capteura® 200 Series Non-Contact Displacement Sensing System
The Capteura 210 Single Channel Amplifier
accepts a wide power input range of 5 to 12 VDC.
Other integrated features include:
■ Single Channel low noise integrated amplifier
with Analog Output
■ On board high-stability excitation (clock)
BNC sensor Input Connector
■ M8-6pin front connector provides access to
both DC power and Analog Output including
a 2-meter cable
■ A Mating Male M8 6-Pin connector with a
1.5 meter cable
■ Exceptional Temperature Stability – 50 PPM/C
■ Better than 100,000:1 resolution (25nm)
with HPC-150E-A-L2-1-B sensor, at 200Hz
bandwidth, over 2.5mm range (double the
range of competitive systems)
■ 200Hz -3dB Bandwidth Standard
■ 1KHZ, 4Hz, or 12KHz Bandwidths Optional
■ 32 pin DIN DC power and Analog Output
Rear-connector (optional)
■ Extremely long cable length with a capacitive
load of 1500 pF
