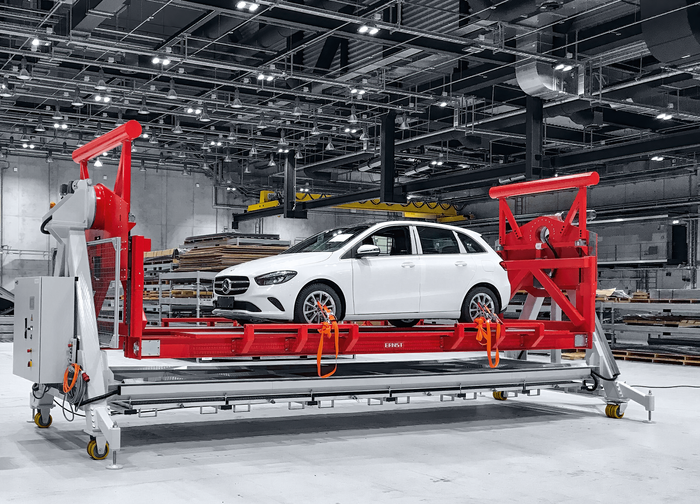

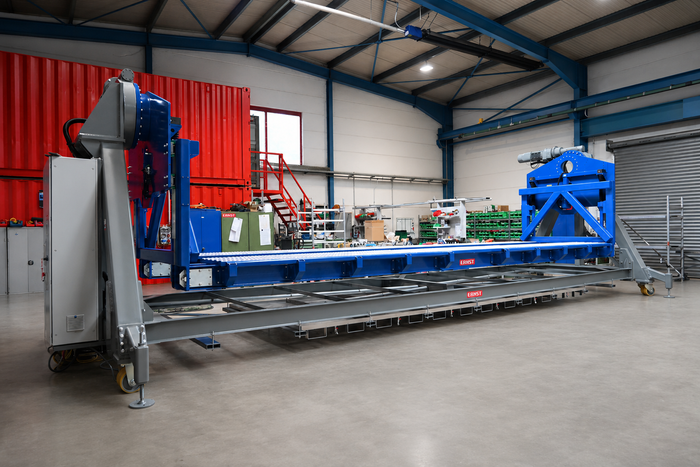

Static Rollover
)
)
)
)
The ERNST
Static Rollover is designed for controlled post-crash vehicle testing, enabling
the inspection and documentation of fluid leakage from batteries or fuel tanks.
Freely programmable operation, adjustable rotational speeds in both directions
and an integrated quick-release mechanism ensure flexible and safe handling.
Designed
for vehicles weighing up to 5,000 kg and measuring up to 7,000 mm in length,
the system can be adapted to customer-specific requirements, making it a
versatile solution for modern crash testing facilities.
Key
Features
• Test
vehicles up to 5,000 kg and 7,000 mm in length
• Continuously adjustable rotational speed up to 9°/s
• Rotation in both directions
• Freely programmable operation
• Integrated quick-release mechanism
• Height-adjustable platform
• Mobile design with integrated alignment system
• Safe starting position reached within 20 seconds
• Customer-specific configurations available
