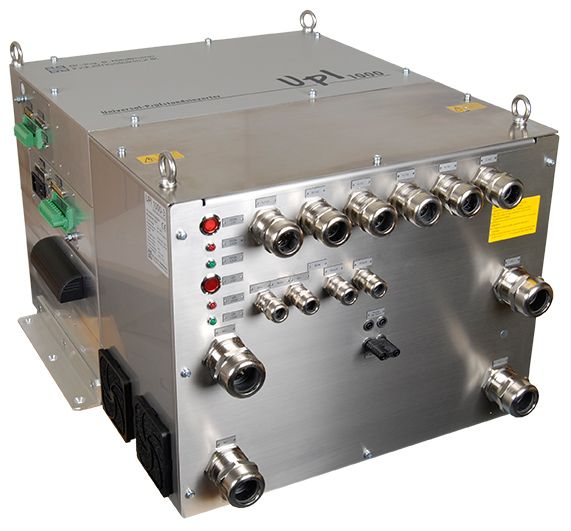

Universal test bench inverter UPI800 / UPI1000 / UPI1250
)
Main features:
• Power electronics with SiC modules with suitable driver control.
• Control and data acquisition via dSPACE MicroLabBox® with 50-pin DSub connectors• AC and DC voltage acquisition (± 0,6%, 0 – 800 kHz)
• DC and AC current acquisition (± 1%, 0 – 72 kHz)
• Heat sink temperature sensing
• Connection possibilities for resolver and incremental encoders via interface cards
• Protection against overcurrent and overvoltage
• DC power supply via battery simulator or vehicle battery possible
• Internal FPGA logic for self-protection (max. frequency, hot branch, heat sink temperature)
