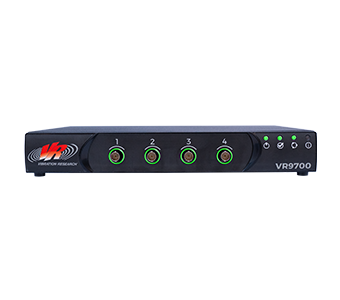

VR9700 Vibration Controller
)
)
)
)
)
)

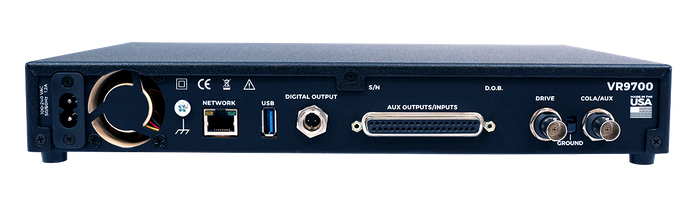

This controller features two outputs for
shaker control and external equipment synchronization and four BNC input
channels with sample rates up to 256 kHz. Engineers can run multiple VR97500s
independently on separate shakers or rack mount them for higher channel counts.
The VR9700’s double-insulated chassis
eliminates the potential for ground loops created through the safety ground,
and its inputs and outputs are ground-isolated, breaking additional potential
paths for ground loops.

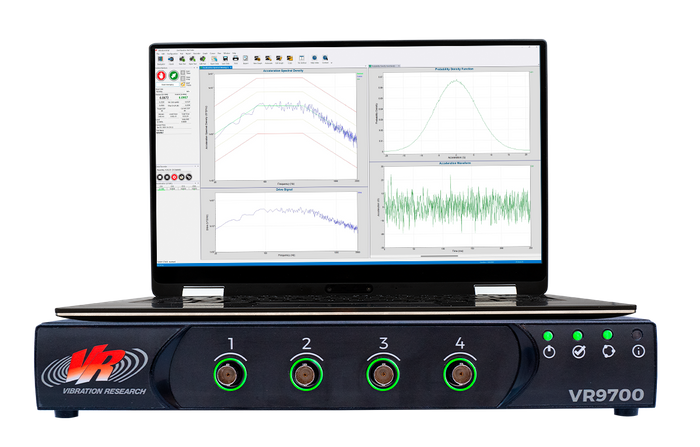

The VR9700 operates with the VibrationVIEW
software on a standard PC or laptop. No special boards or PC drivers are
required; simply connect via an Ethernet cable. VibrationVIEW is an innovative
software program for setting up and safely controlling vibration shaker tests
and generating custom reports. Customers can configure VibrationVIEW for as
many or as few test modules as they like (à la carte). This program includes a
robust report builder that automatically produces presentation-ready reports at
the end of a testing sequence.
