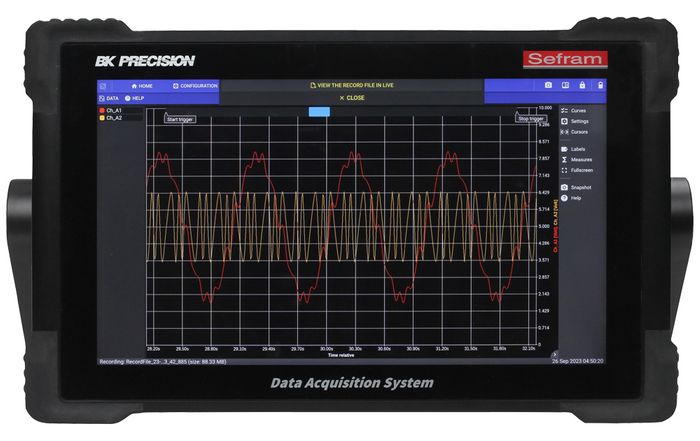

B&K Precision DAS1800 High Speed Modular Data Acquisition Recorder
)
The DAS1800 is a high-speed modular data acquisition system easily configurable to accommodate a wide range applications. With 10 slots for input modules and a plug-and-play design, users can easily achieve optimal setups every time. Select modules as needed to acquire voltage, current, resistance, and temperature measurements.
For high-speed measurements, the D18-UNI4, D18-HVM4, and D18-HIZ4 modules offer 4 channels per module, simultaneous sampling, and sampling rates up to 1 MSa/s/ch. The D18-HVM4 module is also capable of measuring high voltage signals up to ±1500 VDC or 1000 Vrms with safety ratings for CAT III 1500
V and CAT IV1000 V. For measuring low voltage and slow-changing trends, the D18-MUX8 provides 8 channels per module, multiplexed sampling, and sampling rates up to 5 kSa/s.
The DAS1800 offers variable sampling rate capabilities, allowing users to efficiently capture
transients and trends in the same file without missing or duplicating data. Configure up to four different sampling rates within a single recording. Coupled with advanced triggering and the internal 2 TB solid-state drive, this recorder provides the longest recording time of any data acquisition recorder on the market
