BOLAB Automotive EMC Test System

The Most Advanced & Easy-to-Use Solution for ISO & OEM Compliance

Absolute EMC, in partnership with BOLAB Systems, offers the most comprehensive and easy-to-program automotive EMC test system available today. Designed for full compliance with ISO 7637-2, ISO 7637-3, ISO 16750-2, FM1278, CS.00244, ISO 21780, GM3097, VW, PSA, and many more OEM standards, this system provides unmatched flexibility, accuracy, and ease of use.

At the core of the system is WaveMaster Software, a powerful control interface that simplifies pulse creation, real-time DUT response monitoring, automated test sequencing, and seamless data acquisition (DAQ) integration.

Unmatched Performance & Full System Integration

Covers All Required Automotive EMC Standards

• ISO 7637-2 & ISO 7637-3 – Transient immunity and emissions
• ISO 16750-2 – Electrical environment testing
• FM1278 & CS.00244 – Military and aerospace EMC testing
• ISO 21780 – 48V electrical system testing
• GM3097, VW, PSA & More – OEM-specific compliance

Cutting-Edge Hardware Components

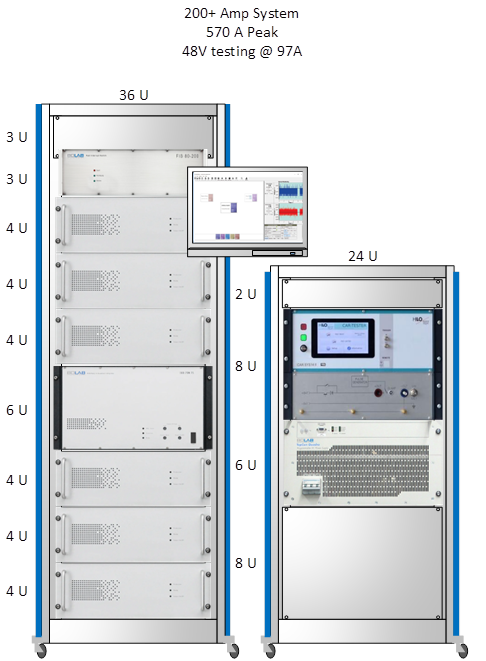

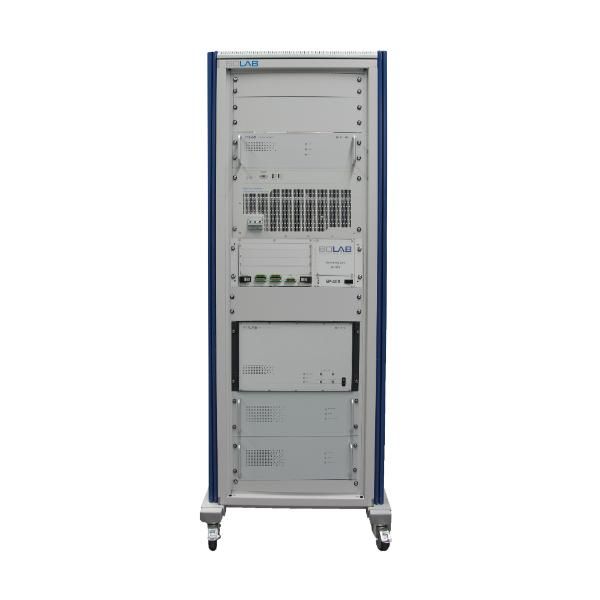

• 100-TS Series 4-Quadrant Amplifier – Precision signal amplification with real-time pulse monitoring
• FIS 100-200 Fast Interruption Switch – Enables ultra-fast disconnects for transient testing
• 10/63-210 1C Load Dump Generator – Simulates high-energy transients in automotive power networks
• CAR-SYS 14 System – Performs EFT, micropulses, and coupling/decoupling tests (CDN included)
• CU-600 Switch Matrix (Optional) – Expands to 16+ switching configurations for line disconnections
• Multiple Coupling Methods: Supports CCC, ICC, DCC, and more for precise transient injection
• Calibration Loads & Transient Emission Accessories – Ensuring high accuracy & repeatability

WaveMaster Software – The Ultimate Test Interface

• Real-Time DAQ Integration – View and analyze pulses as they happen
• Pulse Creation & Modification – Build pulses from scratch, modify existing waveforms, or import scope captures
• Automated Test Sequences – Design complex test routines with ease
• External Software Connectivity – Seamlessly integrates with your DUT DAQ system
• Fast Updates for New Standards – Stay ahead of the curve with quick software modifications and support

Item	Discription	Picture
BLS 100-TS Series	4 Quadrent Amplifier SYSTEM BLS 110-70R-TS - Arbitrary 4-Quadrant Voltage Amplifier -30 V … +70 V | 40 A | 1.000 W BLS 120-70R-TS - Arbitrary 4-Quadrant Voltage Amplifier -30 V … +70 V | 76 A | 1.000 W BLS 130-70R-TS - Arbitrary 4-Quadrant Voltage Amplifier -30 V … +70 V | 114 A | 1.000 W BLS 140-70R-TS - Arbitrary 4-Quadrant Voltage Amplifier -30 V … +70 V | 152 A | 1.000 W BLS 150-70R-TS - Arbitrary 4-Quadrant Voltage Amplifier-30 V … +70 V | 190 A | 1.000 W BLS 160-70R-TS - Arbitrary 4-Quadrant Voltage Amplifier -30 V … +70 V | 228 A | 1.000 W Added Options: BLS 100I4 - Internal 4 Channel Isolation Amplifier BLS 100VR - Adjustable Internal Resistor 0 … 200 mOhm BLS 100AC-OVP - Over Voltage Protection for serial operation of a high voltage DC power supply and a 4 quadrant amplifier system. (Only needed if plan to use the amp with HV testing)
BLS FIS 100-200	Electronic Switch for short interruptions (ISO 16750-2 4.6.1.1) • 100 V / 200 A • 1 x Power Switch • 16 x Signal Switch • Including WaveMaster Software License
BLS FIS 100-RR	Reference resistors (1Ω, 100Ω und 1kΩ) for the electronic switch
CAR-SYS-14	The EMC test system is designed for testing electromagnetic immunity of the electrical installation of vehicles and components against supply line transients. EMC - Test Equipment for the electrical installation of vehicles. Pulse  #1 1-5/2000us, 600 V          #1 1-5/1000us, 600 V Pulse #2a 1 / 50us, 600 V Pulse #3 5/100 ns, 800 V Options: CAR SYS 14 I - 70V, 50 AMP CDN CAR SYS 14 II - 70V, 100 AMP CDN CAR SYS 14 III - 70V, 200 AMP CDN
BLS SU 600	Switching unit mainframe, 4 Slots configured as below (ISO 16750-2 4.6.1.2) BLS SP 32-2 - Switching unit module, 32 Channels, 2 A, up to 4 can be fitted BLS SP C  -  Switching unit controller  BLS SP VS BP  - Cabeling & system integration for switching unit
BLS 10/63-210 1C	Load Dump Generator according to ISO 16750-2, +OEM With integrated internal resistor, 0 – 32 Ω Applicability use as Single Channel High Dynamic Power Supply
CAR Cal Kit	According to Standards: ISO 7637-2:2011, ISO 16750-2, OEMs Built-in resistor values, selectable:  0.5 / 0.8 / 1 / 2 / 4 / 8 /10 / 20 / 50 Ohm Resistor tolerance: ±1%
CAR CDN 2012	Coupling clamp for automotive electronics Conforms to ISO 7637-3 Pulse injection on signal and control lines
BLS G1-1G-T	Fully Electronic High-Voltage Tester (ISO 16750-2 4.11) Tabletop Unit Test Voltage: 100 .. 2.500/ 5.000 VAC; potential-free Tripping Current: 0 .. 10 / 100 mA Output Power: 500 VA Ramp Function: 10 .. 3500 V/s Test Time: 0.5 .. 999.9 s Mains Voltage: 230 V +/- 10% Safety Class: I
BLS 90-4K	Insulation Resistance Tester (ISO 16750-2 4.12) with stabilized Test Voltage: Insulation Resistance Test: 50 .. 1000 VDC Measurement Ranges: 0 .. 10/100/1000 MΩ
CAR TE 21	Transient Emission Test to ISO 7637-2 Electronically and mechanically (+ life time counter) triggerable load switches Artificial Network with temperature control Shunt resistors: 10 / 20 / 40 / 120Ω Battery current: 50A / 100A
BLS 120-SSM-TS-12	WaveMaster-Software service, support, and maintenance
