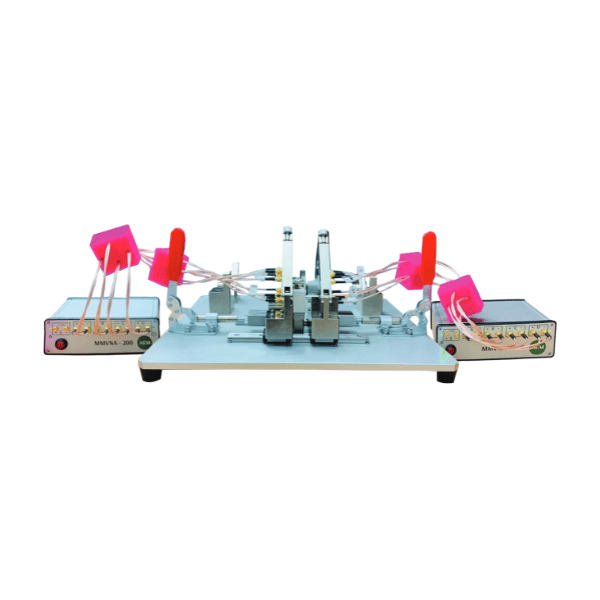

The CTS uses the Mixed Mode Multi-Port Vector Network Analyzer (MMVNA), which is a RF and continuity analyzer. The MMVNA works in tandem with VNA Manager Pro, as the control software.  The CTS test fixture allows for 100% testing and inspection, as it does not damage or destroy the connector during test.

The MMNVA is a portable vector network analyzer that is purpose-built for characterizing twisted pair and coax cables and components. Balanced transmission is finding increasing adoption. MMVNA is a user friendly, versatile analyzer that is most often deployed in manufacturing and lab tests of specialty sensor connections and automotive wiring harness testing.

In a matter of seconds, the MMVNA can measure 256 different S-parameter combinations in a single measurement sweep. The VNA Manager software provides an easy way to configure required S-parameters and arrange them in convenient views and reports. MMVNA is IP addressable, so you can ensure uniform testing methodology across distributed locations with remote configuration capability.

Typical laboratory and Manufacturing use cases:

Automotive wire harness connector manufacturers, who need to test any type of connector during design and provide 100% inventory inspection when needed, as connector is not damaged during test.



Custom Test Fixtures

The CTS is designed to be highly adaptable to any type of connector, through the use of custom PCB fixtures.  AEM has common fixtures readily available.  Custom PCB boards are also available, contact us to discuss your needs at Sales@AEM-Test.com.
