DG-Block
)
)
)
)
)
)
DG-BLOCK
DG-Block is a true turnkey solution relying on a very intuitive programming system, the user friendly computer software (DG-BlockSoft).
Each block is designed to make a torque & tension control solution with universal amplifier – advanced regulation – brake power supply & analog drive output.

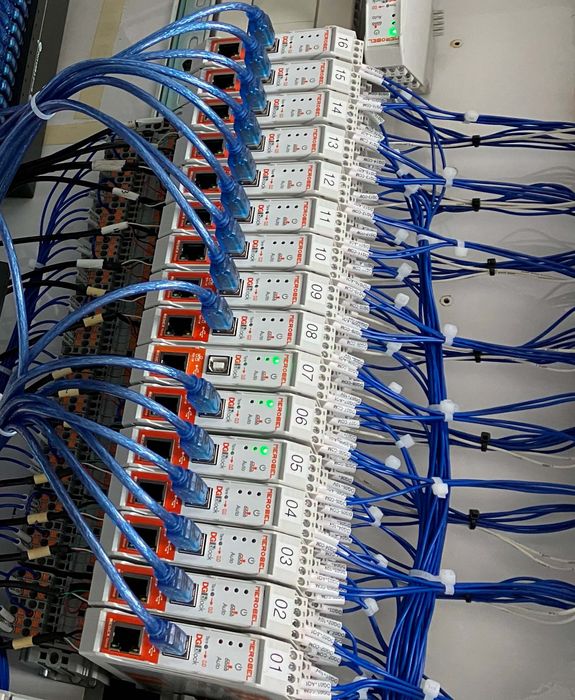

Shared process instructions from one leader device to several follower devices, without any extra wiring.
ADVANCED FEATURES OF REGULATION
> Built-in precision amplifier
> P.I.D regulation algorithm
> Open + closed loop modes included
> Direct power supply for e-brake
> Very easy set-up with the PC software (Windows)
> Automation communication : MODBUS TCP/IP

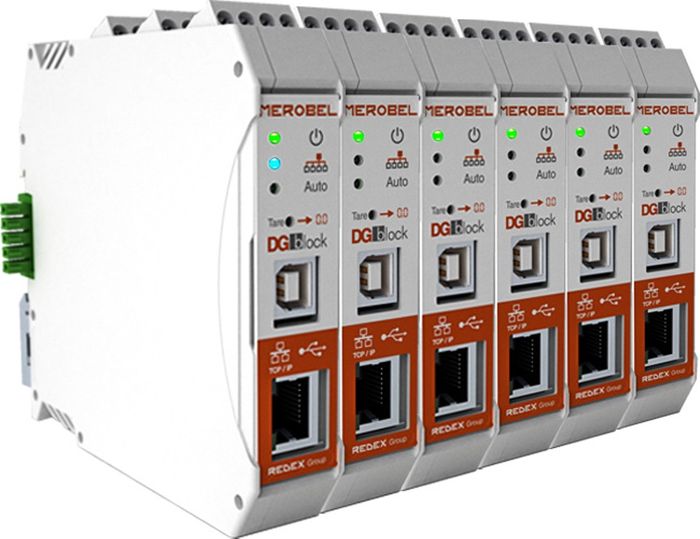

> Specifically designed for Mutli spindle applications
TECHNICAL FEATURES
|
Part number |
# |
ME134330-00 |
|
Power supply |
[V
DC] |
24 → 35 |
|
Max power consumption |
[VA] |
70 |
|
Input measure |
[V
DC] |
1 mV → 10 V |
|
Input set point |
[V
DC] |
0
→ 10 |
|
Input logics |
[V
DC] |
5
→ 24 |
|
Output A01 & A02 |
[V
DC] |
-10 → +10 |
|
Output C1-C2 max current |
[A] |
1.5 |
|
Ambient temperature |
[ °C ] |
0
→ 40 |
|
Weight |
g |
150 |
SOFTWARE
Simple interface with all parameter
settings displayed in a unique window.
Scope function
for easy data
readout
