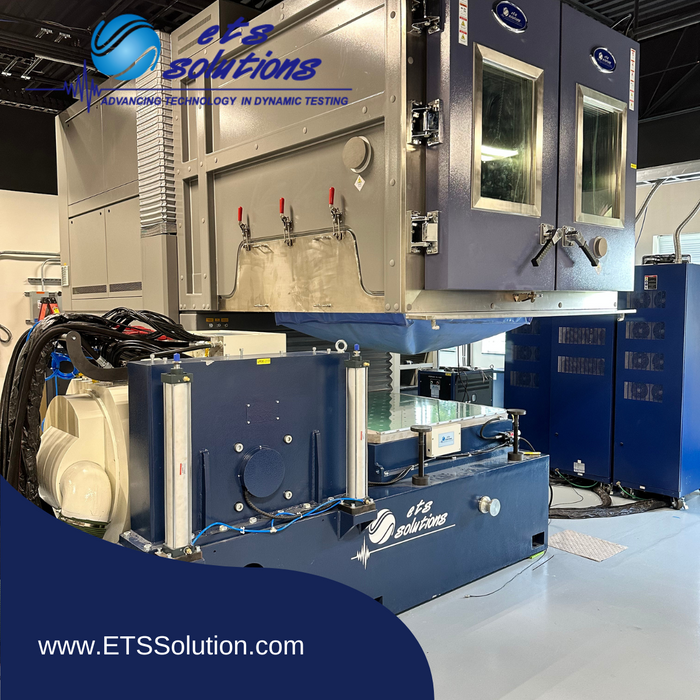

ETS Solution - I1045-220 Shaker and AGREE Chamber
)
I1045M-220 Shaker
• Force, sine and random: 24,200 lbf sine, 22,000 lbf random
• Force, shock (6ms/11ms): 64,900 lbf/ 48,400 lbf
• Usable frequency: 5 -2,500 Hz
• Continuous displacement: 2.0“ pk-pk, 3" pk-pk shock
• Max velocity (sine): 79 in/s
• Max acceleration (sine): 220 g short duration, 154 g continuous duty, random 180, shock 600 g @ 3ms
• Max acceleration (random): 180 g RMS short duration, 120 gRMS continuous
• Armature diameter: 17.5 in
• Armature weight: 110 lb
• Max static payload: 2,200 lb
• Trunnion mounted with air isolation
