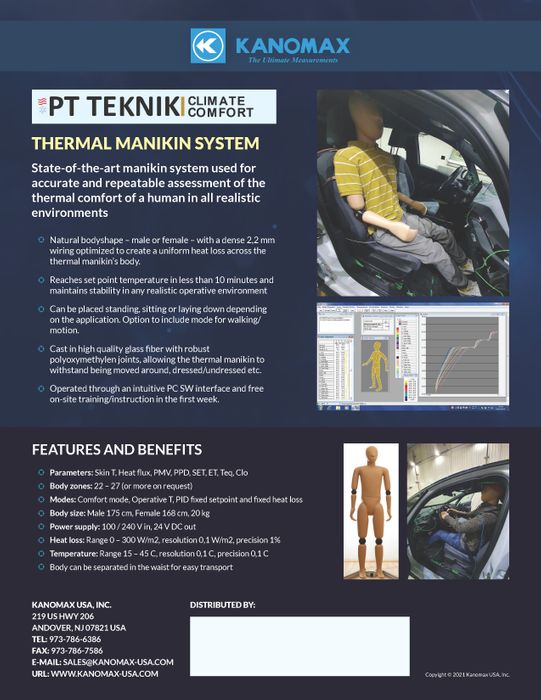

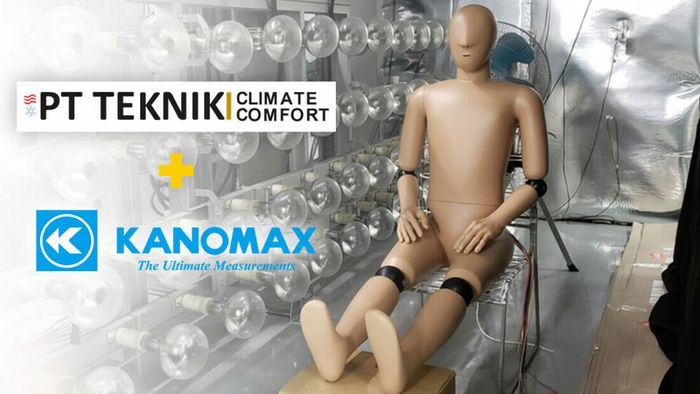

The Kanomax Thermal Manikin System, offered in collaboration with PT Teknik, is a state-of-the-art solution for assessing human thermal comfort under realistic environmental conditions. Designed for automotive HVAC, aerospace, and environmental research, it accurately reproduces human heat exchange to optimize comfort and system performance.

Features and Benefits:

• Manufactured by PT Teknik, distributed and supported by Kanomax USA Inc.

• Natural bodyshape (male or female) with dense 2.2 mm wiring for uniform heat distribution

• Reaches setpoint temperature in under 10 minutes and maintains long-term stability

• Configurable for standing, seated, or reclined positions, with optional walking/motion mode

• 22–27 independently controlled body zones (expandable upon request)

• Supports Comfort Mode, Operative Temperature, PID, and Fixed Heat Loss control modes

• Measures Skin Temperature, Heat Flux, PMV, PPD, SET, ET, Teq, and Clo

• Durable glass-fiber body with robust polyoxymethylene joints

• Operated via intuitive PC software interface with available training and support

• Power supply: 100–240 V input, 24 V DC output

Applications:
Automotive HVAC performance and cabin comfort testing • Aerospace climate simulation • Thermal ergonomics and clothing R&D • Building and ventilation optimization • Environmental and academic research
