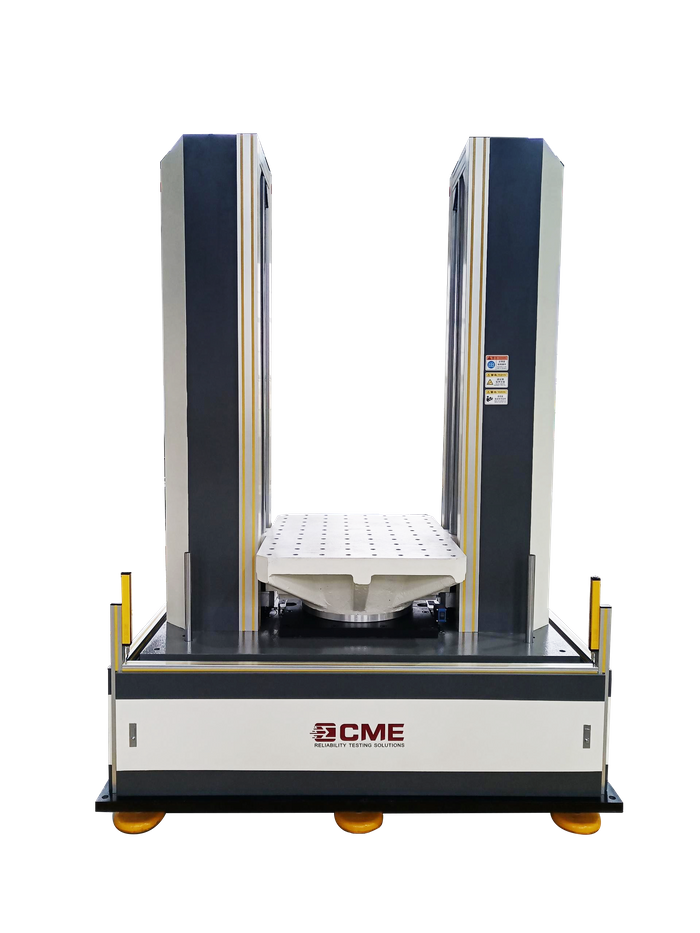

KRD11 Pneumatic Vertical Shock Test System
)
KRD11 series is a fully automatic pneumatic lifting vertical shock test system. It is vertical shock test equipment with novel design, high degree of automation, simple operation and convenient maintenance. It is used to measure and determine the impact resistance of products or packaging, and assess the functional reliability and structural integrity of the test product in a shock environment.
Features:
- Windows OS stable control system, full-automatic remote-control interface, the operator only needs to input simple values, integrated IPS-2000 shock control & measuring system can accurately execute the shock test.
- Pneumatic drive, simple structure and high reliability, without hydraulic leak risk and keep the environment clean.
- Integrated shock and bump test in one system, maximum bump rate up to 120 times/ min.
- IPS-2000 shock control and measurement system can perform manual shock, continuous shock (bump test), single shock, and interval shock.
- Non-contact height measurement, automatic control of lifting height, with high accuracy and good repeatability.
- Built-in brake mechanism: to avoid secondary rebound bumps and more stable positioning of the table.
- Adopts the high strength and hardness cast aluminum table: which has high first-order resonance frequency, featured with low noise and no clutter.
- Multi-track guide posts: combined with good lubricity and noise free hydraulic balance lifting system to achieve stable shifting.
- Multiple waveforms: it can perform conventional half-sine waves, post-peak sawtooth waves, or trapezoid waves.
- One-stop for measurement & analysis: various waveform tolerance bands for reference standards are built in the software, users just need to apply and start, customized test report will be generated after the test.
- Free-foundation: The shock testing machine comes with a high-performance buffer and vibration isolation device; just put it on the level floor, the installation is convenient.
- Applicable Standards: MIL-STD-202, MIL-STD-750, MIL-STD-810, MIL-STD-883, IEC68-2-27, UN38.3, IEC62281, IEC62133-2, UL2054, IEEE1625, SAEJ2929, IEC62660-2, ISO12405-3, UL2580.
