Key Features

Mixed-Mode S-Parameter Testing

• Measurement accuracy in-line with high-cost large vector analyzers, but at a fraction of the cost and with a much smaller form factor
• Supports single-ended and dual-ended test configurations
• Ideal for automotive, telecom, and high-speed data applications

Customizable & Scalable

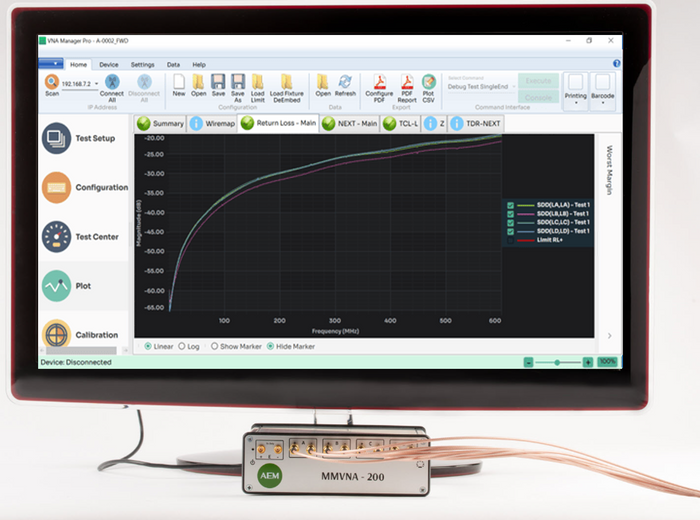

• Configure tests using VNA Manager Pro software
• Create and save custom test profiles
• Export results in Touchstone (s8p, s16p) and CSV formats

Seamless Integration

• Integrates easily with proprietary systems via TCP/IP socket interface
• Supports command-based control for automation and remote testing
• IP-addressable for distributed test environments

Applications

• RF component validation
• High-speed cable and connector testing
• Automotive harness and Ethernet testing
• Manufacturing and end-of-line test systems
