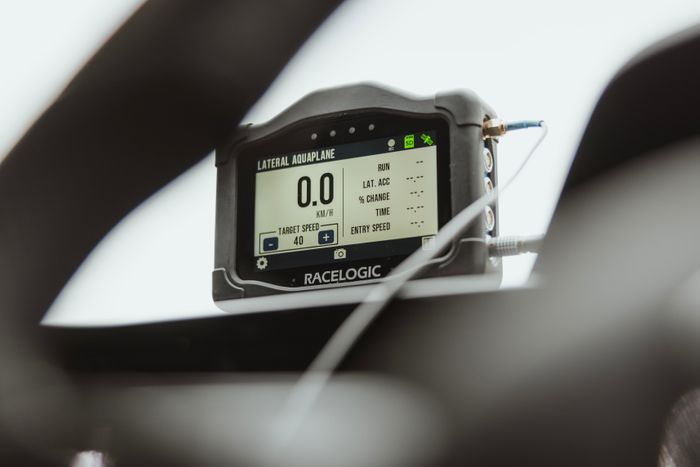

VBOX Touch
)
The VBOX Touch features a 25 Hz GNSS receiver, responsive
colour touchscreen and the ability to run multiple applications
on the same hardware. Built on a platform that allows
functionality to be expanded through future software and
firmware upgrades, the VBOX Touch is an extremely versatile
data logger.
Applications are written in Python script enabling users to
create their own, including custom CAN Based applications to
solve specific testing needs. New applications can be loaded by
inserting an SD card containing the new script and it is just as
quick to revert to the standard functionality of the VBOX
Touch, by inserting the SD card containing the original data.
Other features include the ability to connect to a vehicle’s CAN
Bus, capture screenshots and see live test results.
Features:
- 4.3" TFT daylight readable capacitive touch screen
- 4 x high brightness LED indicators
- Wi-Fi connectivity
- 25 Hz GNSS receiver with internal patch antenna
- Python-based applications; ideal for solving user specific testing needs
- Log up to 64 CAN channels across two CAN Bus interfaces
- Removable protective rubber cover included
- SMA connector for external GNSS antenna (overrides the internal antenna when connected)
Current Apps Available:
- Performance
- Multi-Function Display
- Tyre Temperature Monitoring
- Brake Temperature Monitoring
- Speed Profiler
- VPRS Display
- SLIF Validation
- Lateral Aquaplane
- 10 more community developed Apps
