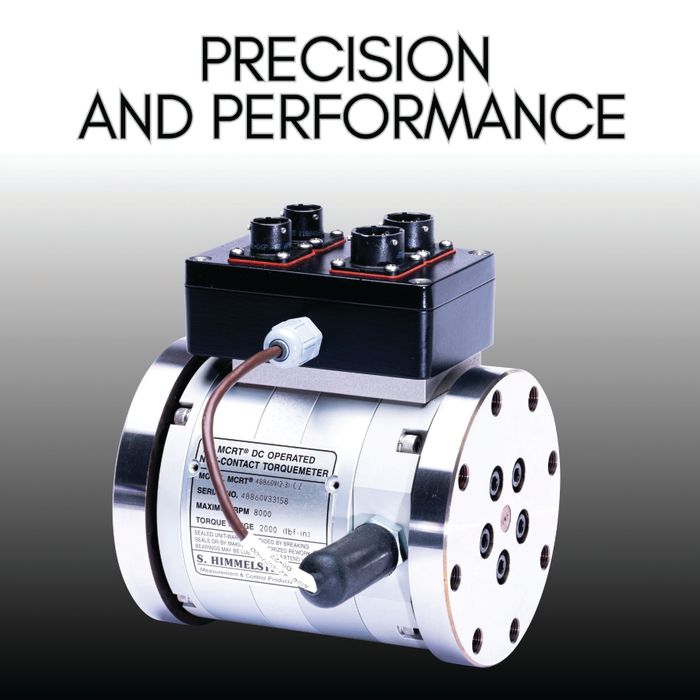

S. Himmelstein will present the new MCRT 48/49860V, 48/49861V and 48/49870V Series flanged digital torque transducers at the expo. These offer excellent measurement accuracy with fast installed response and high mechanical overloads and electrical overrange. Output signals for torque, speed and horsepower are provided as analog (±5 or ±10V DC) and digital over RS232 serial port. Available capacities range from 56.5Nm to 10,8500Nm.

The transducers are available in two accuracy grades: ±0.1% and ±0.05% of full scale. Mechanical overloads of 200% or 400% offer a safety margin in the presence of high startup torques or large torsional oscillations. Electrical overrange of 150% reduces potential for errors. Output bandwidth is 1kHz with 13 user-selectable, low-pass filters.

Included interface software allows fast PC setup and reconfiguration while selecting from up to 33 units of measure, without recalibrating. All are calibrated CW and CCW to rated load in S. Himmelstein’s ISO 17025:2017, NVLAP-accredited laboratory (NVLAP lab code 200487-0). They are well suited for a broad range of applications including performance and endurance testing of engines, transmissions, drive systems, motors, servomotors, gearboxes and actuators.

Booth 13018
