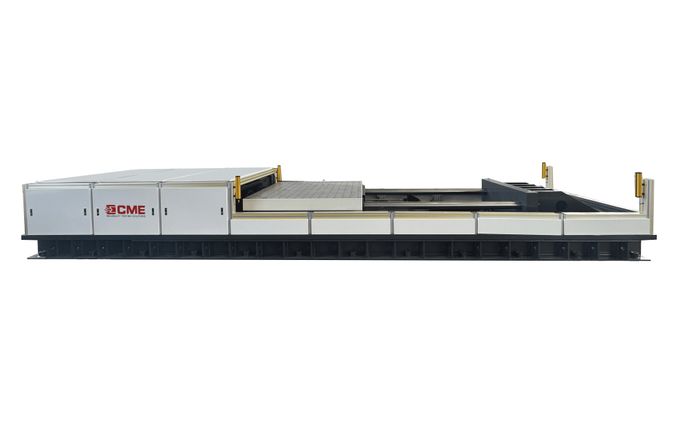

Visitors to CME’s booth will be able to see the company’s KRD12 series high-energy battery shock test system, which is suitable for various battery testing procedures and meets battery testing standards including UN38.3, IEC62281, IEC62133-2, UL2054, SAE J2464, SAE J2929, ISO 12405-3 and UL2580. It is a fully automatic pneumatic driving shock test system, with easy maintenance. The system can perform classical half-sine battery test specifications, such as 16g@60ms, 24g@16ms, 25g@15ms, 30g@15ms, 50g@11ms, 50g@15ms and 150g@6ms, and high-energy shock tests especially for new-energy batteries, to simulate the shock energy that the product is subjected to in the real world. The purpose of the tests is to ensure the safety and reliability of batteries and products.

The system offers a Windows-based control system, pneumatic drive technology and automatic control of shock speed. It has the high strength and hardness of a cast-aluminum table, with multiple waveforms.

The high-energy battery shock testing specifications are 60g@45ms, 24g@50ms, 90g@20ms, 150g@15ms, 70g@45ms, 300g@11ms and 200g@10ms.

Booth 11022
